100 ton cnc press brake with hiwin ball screw

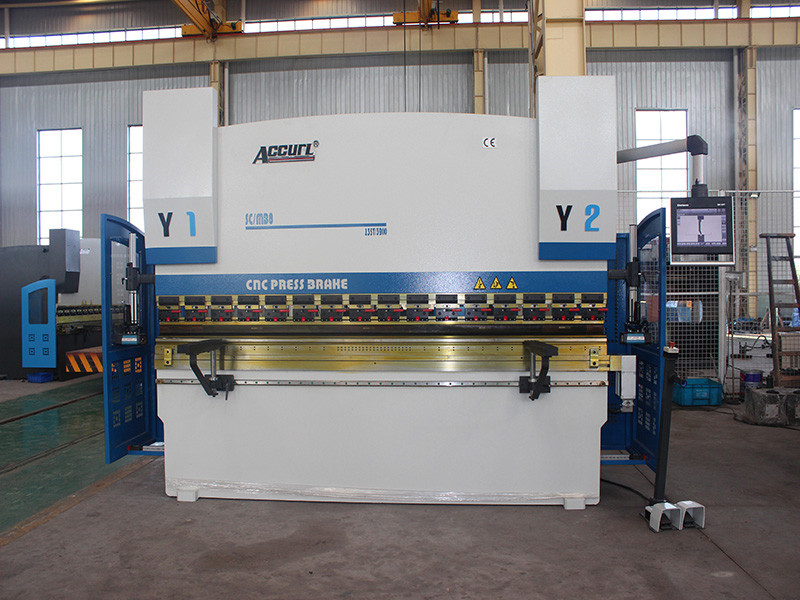

screw cnc press brake

1. Performance Features:

The whole structure of the hydraulic folding machine:
- Totally European design,streamlined looking,Frame: consists of right and left wall boards, working table, oil box, slot steel and etc. The stress of the welded parts can be eliminated by vibration. The machine enjoys high accuracy and high strength and
can be transported easily
- Welded structure: the stress of the welded parts can be eliminated by vibration; so this forging press gives high accuracy.
- High accuracy,high efficiency,simple and convenient operation,good performance, favorable price and best service.

1. Hydraulic system:

- Adopt integrated hydraulic control system, more reliable and easy for maintenance. The hydraulic system consists of motor, oil pump and valve groups and it is installed at the top of the oil box.
- Every complete working cycle can be achieved through the control of hydraulic valve.The remote adjustment valve can adjust the working pressure at the right side of the wall board.
- All seals in cylinder is imported,the most famous brand,good quality and high performance
- Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly

2. Electrical system and the safety interlock:

- Electrical components are imported or from Sino-foreign joint Venture,in accordance with international standards,reliable safety,long life,good anti-interference ability,a radiation unit is fitted in electrical cabinet.
- Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.
- The machine by the European Union CE certification and ISO quality system certification

3. Synchro control system:

- Slide syncho system: adopt steel torsion bar synchro system, simple in structure and high in accuracy
- 2 ends of slide has 2 synchro fork which make,The system uses upper die compensation to improve the brake precision.
- The worktable adopts the particular design,reducing the crowning distortion amount of lower tool effectively.

4. Ram structure:

- Upper stroke design for bending,low noise,stable operating situation.
- Can move the ram up slowly,which allows the operator to control work piece conveniently.
- Universal fixing-surface of the upper tool can be meeting with the clamping requirement of the tool farthest.
- Separate sectional clamping bars are supplied as standard equipment in order to securely fasten short dies.

2. Main Import Configuration

·· DA-41system
·· Japan yaskawa Servo motor and drive
·· Germany hydraulic system
·· Taiwan HIWIN Ball screw and Linear guide
··German EMB joint
··FIETZ, Japan, VALQUA, Japan Sealing ring

Type Item		Unit	WC67K-30T/1600	WC67K-40T/2200	WC67K-40T/2500	WC67K-63T/2500	WC67K-63T/3200	WC67K-80T/2500	WC67K-80T/3200	WC67K-80T/4000	WC67K-100T/2500	WC67K-100T/3200	WC67K-100T/4000
Nominal Force		KN	300	400	400	630	630	800	800	800	1000	1000	1000
Worktable width		mm	1600	2200	2500	2500	3200	2500	3200	4000	2500	3200	4000
Poles Daistance		mm	1280	1850	1850	1900	2560	1990	2560	3000	2020	2600	3000
Tnroat Depth		mm	200	230	230	250	250	300	320	320	320	320	320
Slide Travel		mm	80	100	100	100	100	100	100	100	120	120	120
Nax Open		mm	285	320	320	320	320	320	350	350	320	370	370
Motor power		KW	3	5.5	5.5	5.5	5.5	7.5	7.5	7.5	7.5	7.5	7.5
Dimension	L	mm	1600	2200	2500	2500	3200	2500	3200	4000	2500	3200	4000
	W	mm	1000	1200	1200	1300	1300	1400	1500	1500	1600	1600	1600
	H	mm	1600	1910	1910	2210	2210	2300	2300	2400	2400	2600	2700
Weight		KG	1300	2700	2800	3600	4400	5000	5500	5500	5000	5600	6500

Major Import configuration list

NO	UNIT	NUMBER	MARK
1	CONTROL SYSTEM	1set	DA-41S(DELEM)
2	SEVRO MOTOR	1set	Japan yaskawa
3	HYDRAULIC SYSTEM	1set	HOERBIGER, Germany.
4	Ball screw	2sets	Taiwan HIWIN
5	Linear guide	2set	Taiwan HIWIN
6	joint	1set	German EMB
7	Sealing ring	1set	FIETZ, Japan, VALQUA, Japan.
8	Major electrical components	1set	Import or joint venture
