3 axis cnc press brake delem da52s 4 axis cnc press brake 125 tons

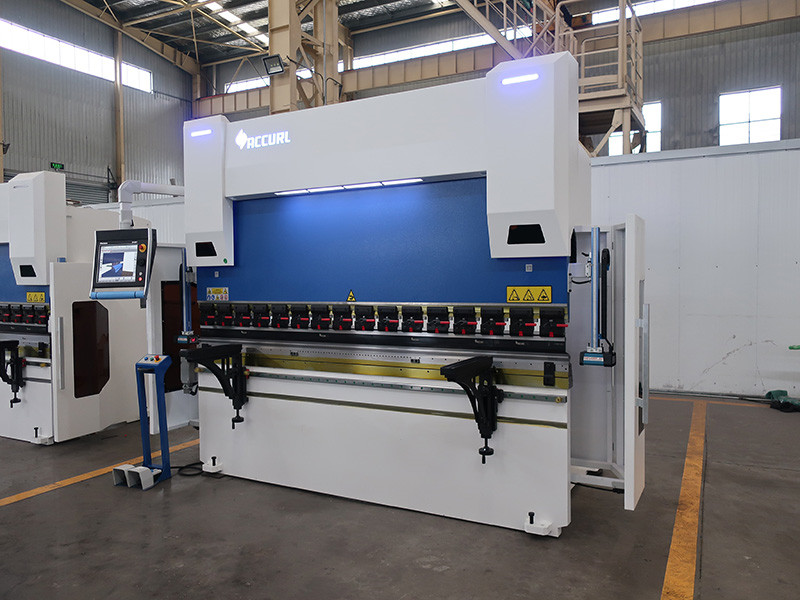

press brake with 3 cylinders

Stronger, faster and deeper bends;
Euro Pro B Series Hydraulic CNC Press Brake Bending Machines allow you to have more production capacity and prevent time loss on production.

General Features

Chrome coated cylinders are machined with 0,001 mm precision and pistons are specially hardened.
Original clamps are user friendly and machined with high precision.
Front support arms are slideable along machine length and easy to adjust.
Compact and well-known brand Bosch-Rexroth hydraulics are produced according to CE standards.
Two photocells on sides for rear guard.
Fast tool tightening.
Optic linear scales are sensitive up to ± 0,01 mm.
by CNC controller, foldable back gauge fingers for reverse bending applications.
Multifunctional and highly programmable, DELEM DA58T CNC controller.
SIEMENS/SCHNEIDER electrical system.
Automatic axis referencing when machine is turned on.
Side guard is standard meeting CE regulations.
Synchronized working cylinders will give you the best bending result with its perfect repeatability ratio.
2 axis ultra strong backgauge system (X=800 mm and R), with ± 0,01 mm. repeatability, moves along rails and ball screw, bending length controlled

Standard Equipment:

Height adjustable and movable sliding front suport arms.
DELEM DA58T 2D graphical controller with PC-Profile-T 2D software.
Promecam easy clamping system.
410 mm throat depth.
4 plus 1 axis CNC:
-Y1, Y2 precision ram positioning.
-X, R precision servo-driven back gauge.
-Manually adjustable Z1, Z2-axis.
-CNC motorized wave crowning.
2 back gauge fingers
Covers for cylinders and top beam
Top and bottom tools are surface hardened by special treatment.
CNC controlled strong X=800 mm back gauge
Foot pedal is produced according to CE standards and suitable for single and multiple bends.
2 photocells are placed facing each other for rear guards.
Preadjusted electrical requirements based on customer's geographical area.
Electrical panel with cooling system designed to meet CE standards & composed of automation and electrical equipment with SIEMENS branding.

Quick Details

Condition:New
Place of Origin: Anhui, China (Mainland)
Brand Name: ACCURL
Machine Type: Press Brake
Raw Material: Steel Bar
Material / Metal Processed: Carbon Steel
Power: Hydraulic
Automation: Automatic
Extra Services: Machining
Certification: ISO 9001:2000
After-sales Service Provided: Engineers available to service machinery overseas
Voltage: Optional
Model: more other types
CNC: Optional
Market: Global
Scale: Large
