30T hydraulic bending machine,iron plate sheet bending press brake with DA41 control system

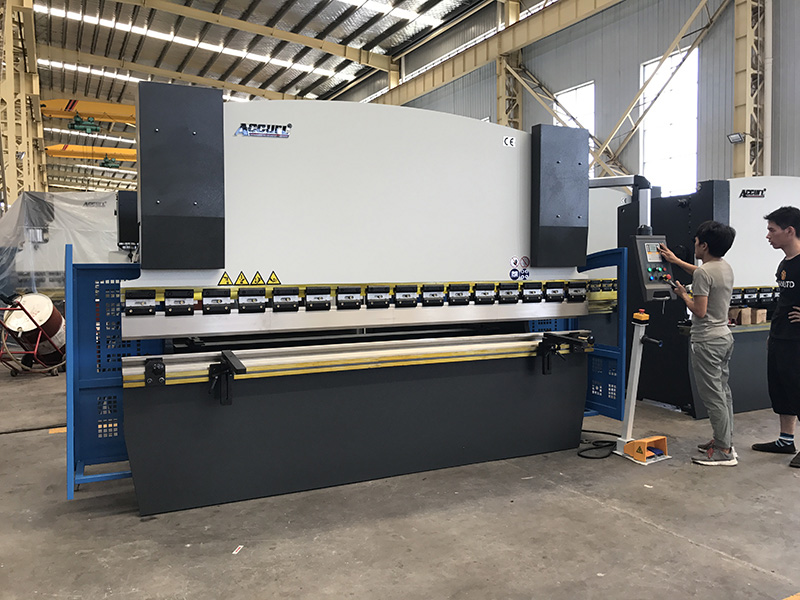

iron plate press brake

Quick Details

Condition: New
Place of Origin: Anhui, China (Mainland)
Brand Name: ACCURL
Model Number: WE67K-30T/1600MM
Machine Type: Press Brake
Raw Material: Sheet / Plate Rolling
Material / Metal Processed: Brass / Copper
Power: Hydraulic
Automation: Automatic
Extra Services: Piercing & Punching
Certification: CE
After-sales Service Provided: Engineers available to service machinery overseas
Product name: press brake machine
Stroke(mm): 75
Throat depth(mm): 150
Main Motor(KW): 3
Stroke times(min-1): 10
Pole distance(mm): 1600
Voltage: customized
Pressure(KN): 1250
Dimension(mm): 1650*1400*1650
Max open(mm): 250

Main Features

1.Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.
2.All ACCURL machines are designed using SOLID WORKS 3D programming and made with enhanced ST44-1 quality steel with the latest technology.
3. MB8 Series are among the highest rated machines which will help you increase your productivity and keep costs at minimum levelwith its user friendly CNC controller and low cost hydraulic maintenance.
4. High quality and repetitive bending is obtained by using synchronized cylinders and valves.
5. Automatic axis referencing and calibrating when machine is turned on.
6. Rigid upper beam runs on 8-point bearings with bending precision of 0.01 mm
7. Well-known top and bottom tool brands are long lasting stiffened and provide precise bending.Silent high pressure pump.

Standard Equipment

1. 4- axis Delem DA52s programming mode CNC control
2. Full synchronisation of Y1 + Y2 axes with proportional hydraulic valve system and constant monitoring by CNC system to +/- 0.01mm accuracy
3. High precision linear scales for measurement of stroke depth mounted on side frames rather than top beam to prevent any distortion in accuracy as beam comes under load
4. CNC-controlled X & R-axis as standard ballscrew backgauge with servo drive motors.
5. Light guards
6. Two micrometric backgauge finger-stops with lateral adjustment
7. Steel mono-block construction
8. Polished chrome plated and ground cylinders
9. Long stroke and large open height dimensions
10. High approach and return speeds for production bending.
11. Euro style quick release top tool holders with intermediaries including wedges for crowning.
12. 88 degree sectionalised goose neck top tool
13. 4 way sectionalised multi vee bottom tool
14. Double footswitch control and pendant type control arm.
15. AKAS laser tooling guards
16. Electrically interlocked side guards
17. Electrically interlocked read access door
18. 2 sliding front support arms with linear guide rails for lateral adjustment and hand wheel for height adjustment, 1000mm long from centre of bottom tool vee.
19. Side guard is standard meeting CE regulations.

Delem DA66T CNC Press Brake Control system

1. 2D graphical touch screen programming mode
2. 3D visualisation in simulation and production
3. 17" high resolution colour TFT
4. Full Windows application suite
5. Delem Modusys compatibility (module scalability and adaptivity)
6. USB, peripheral interfacing
7. User specific application support within the controllers multitasking environment
8. Sensor bending & correction interface

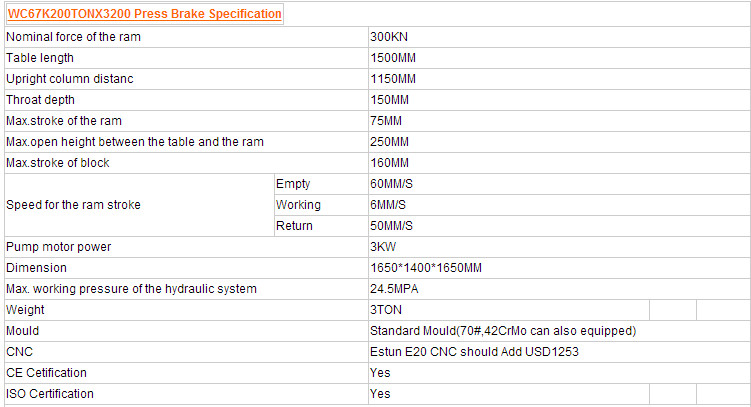

Parameter

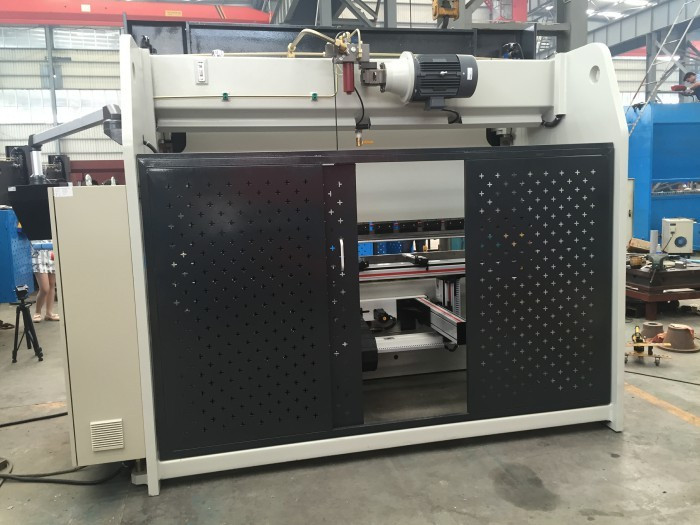

Back of press brake

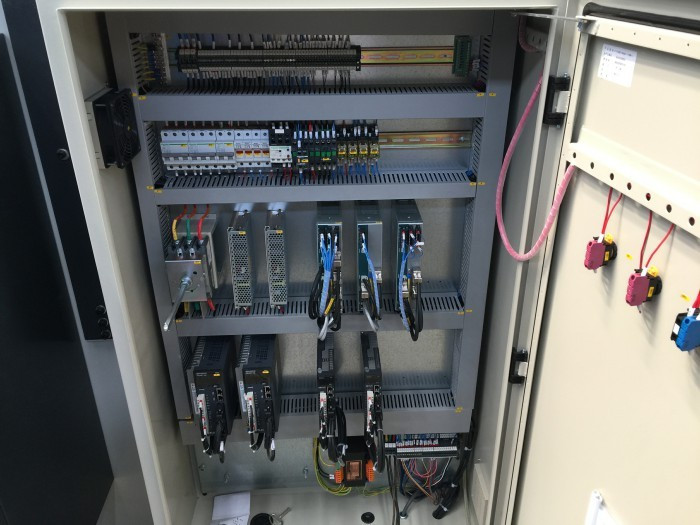

Electric cabinet (Schneider electrics)

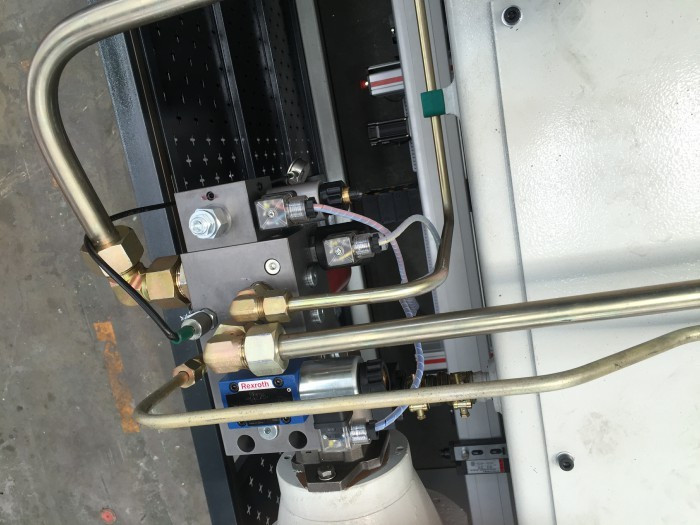

Valve and pump (Bosch, Germany)

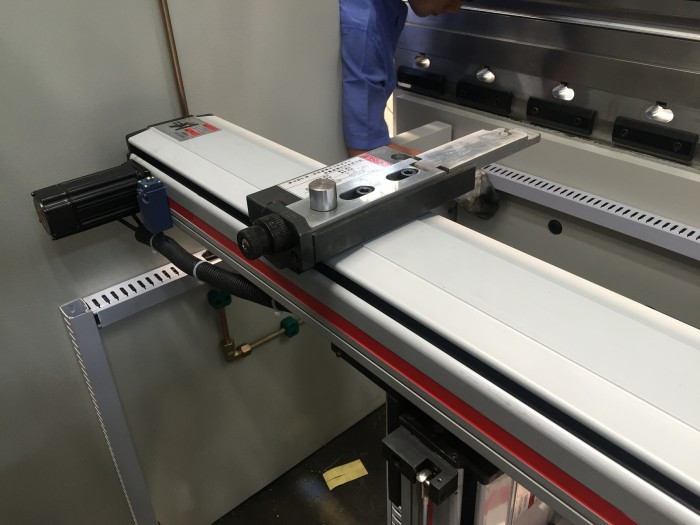

Servo motor

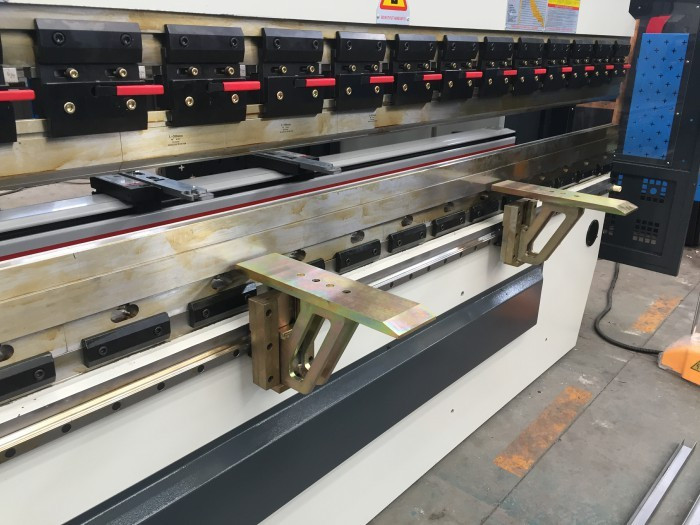

European standard Mold

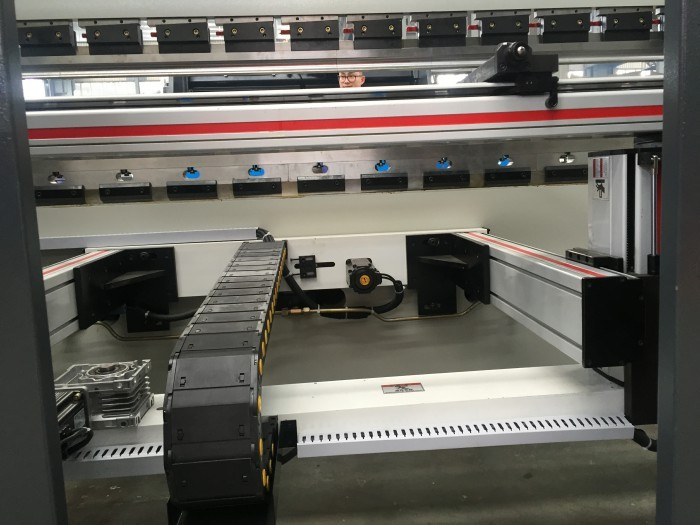

Worktable compensator

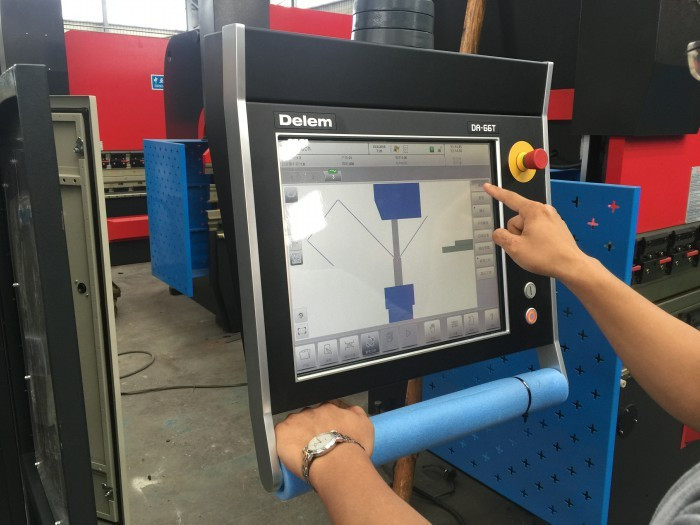

Delem DA66T control system

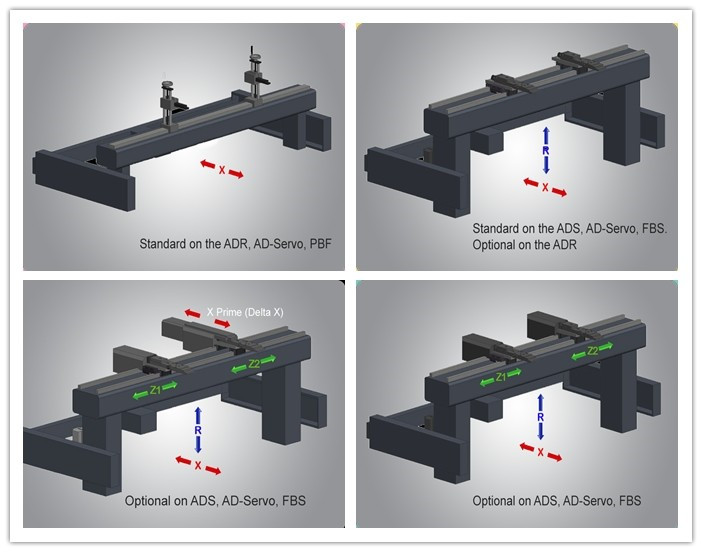

Optional axis of backgauge

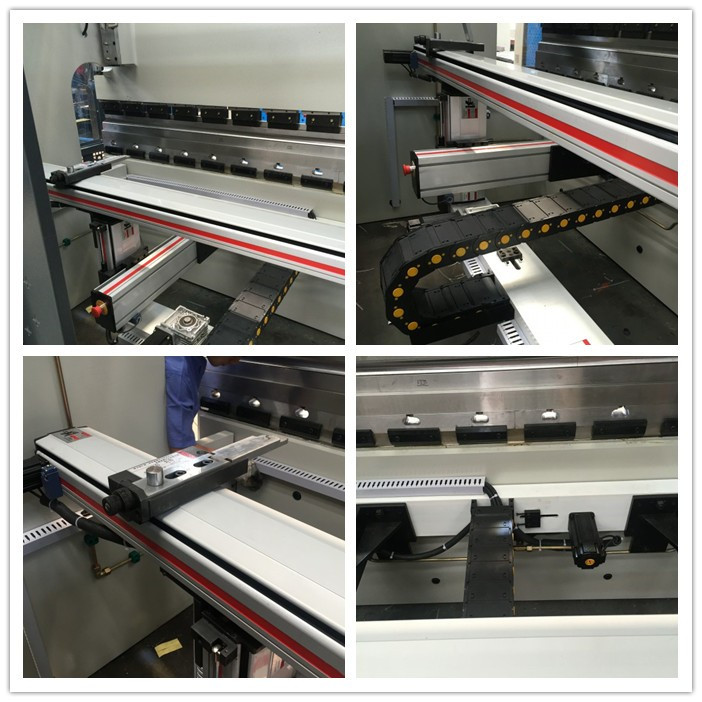

Other details

Our Service

1.Installation Service
We dispatch technician to customer's factory for installation and preoperation of machines. (Customers only need to pay for the airfare and hotel expense.)

2.Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines. ( Customers only need to pay for the airfare and hotel expense.)

3.Quality Guarantee
We arrange a final test before shipment. We will make shipments after making sure machine is in the best performance.
Machine warranty is 3 years
