6-axis hydraulic cnc press brake 200 Ton 3100mm for cnc backgauge X R Z1 Z2-axis

hydraulic press brake 200 ton

6-Axis Hydraulic CNC Press Brake 200 Ton 3100mm for CNC Backgauge X R Z1 Z2-axis with ECOPOWER technology

op range "Made for Europe", with CE standard safety guards from 30 to 6000 tons & from 1,5 to 12 mt

ACCURL® EURO-PRO B Series 160 ton CNC press brake features an automatic CNC crowning system for improved quality, a DELEM DA66T 3D capable graphical control unit to simulate bending sequences and Backgauge has four CNC axes (X, R, Z1, Z2-axis) which is being moved with ball screw-shaft, guided by linear guide, driven by AC YASKAWA servo motor;

ACCURL® machines comply with the strictest EU regulations with reference to safety. The devices installed guarantee thorough safety of the operator without reducing the pace of work.

CE Standard Safety Guards for 200 Ton 3100mm CNC Press Brake:

1. FIESSLER AKAS-LCIIF (inside PLC)
2. Two sides door-type safety guard and rear safety guard with rear door
3. Doors equipped with electric safety switch
4. Safety covers for inside and outside main cylinder
5. Safety covers for front and back of CNC crowning system
6. Often-use internal hexagonal key spanner for adjusting tools

Security Options for different areas:

1. LAZERSAFE LZS003, Australia laser guarding
2. CE standard safety guards
3. Hydraulic system with middle-position monitoring function + Fiessler AKAS-IIF (inside PLC)
4. Hydraulic system with middle-position monitoring function + Fiessler AKAS-LCIIF (inside PLC, laser beam aligning ) + other CE requirement
5. Hydraulic system with middle-position monitoring function + Pilz safety PLC + Leuze light curtain

Standard Components for 200 Ton 3100mm CNC Press Brake:

1. CNC ESA S630 with colour graphics
2. Tool kit: 4 V die (V=16-22-35-50) series of 835mm punches with a fractioned one
3. Hydraulic crowning system managed by CNC
4. GIVI optical scales
5. Lazer Safe dual beam photocells
6. Voith pump
7. Hoerbiger hydraulic system
8. High efficiency motor – class IE3
9. Double guided ram
10. Electrical cabinet with Telemecanique-Schneider,Esautomotion, ABB components
11. HOERBIGER hydraulic valve block, pump and valves

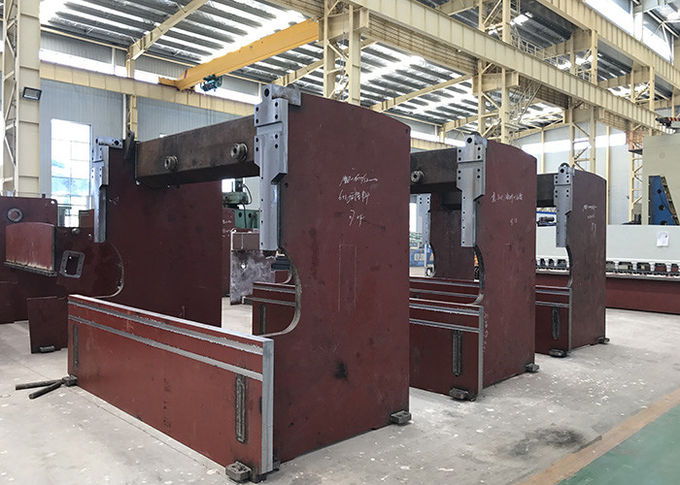

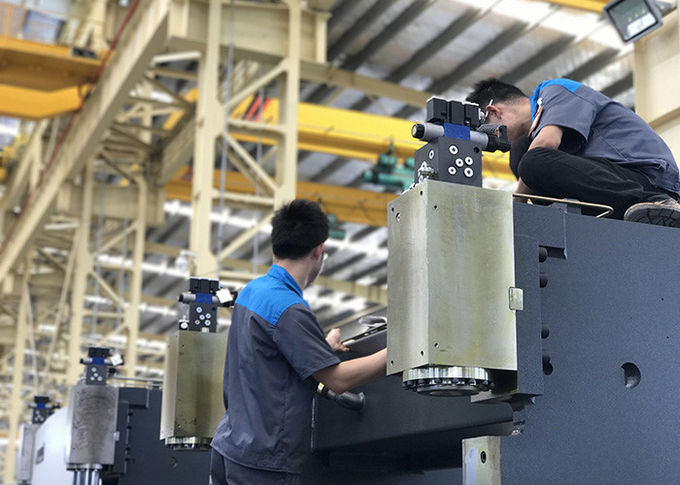

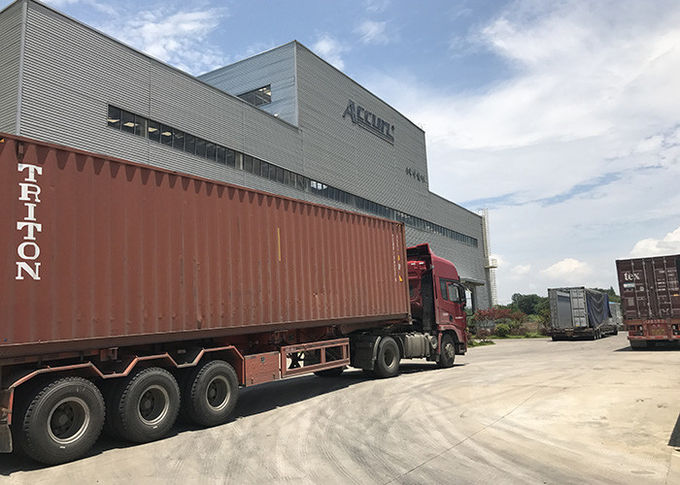

Machine assembly and transportation:

Specifications for 200 Ton 3100mm CNC Press Brake:

TECHNICAL FEATURES
1	Type	Euro Pro B200T/3100 CNC Press Brake
2	Delem CNC System	DELEM DA66T CNC Controller
3	CNC Control Axis	Y1, Y2, X, R, Z1, Z2 axis Crowning
4	Bending Length	3100 mm
5	Bending Capacity	2000 kn
6	Distance between side frames	2700 mm
7	Gap	400 mm
7	Daylight Opening	470 mm
8	Stroke	200 mm
9	Table Height	950 mm
10	Table Width	140 mm
11	Fast Approach Speed	180 mm/s
12	Max. Bending Speed	10 mm/s
13	Return Speed	140 mm/s
14	Motor	18.5 kw
15	Outline Size (LxWxH)	4200×1900×2900 mm
16	Weight+/-	15000 kg
17	Backgauge Stroke	750 mm
