chinese new hydraulic integrated system press brake low price

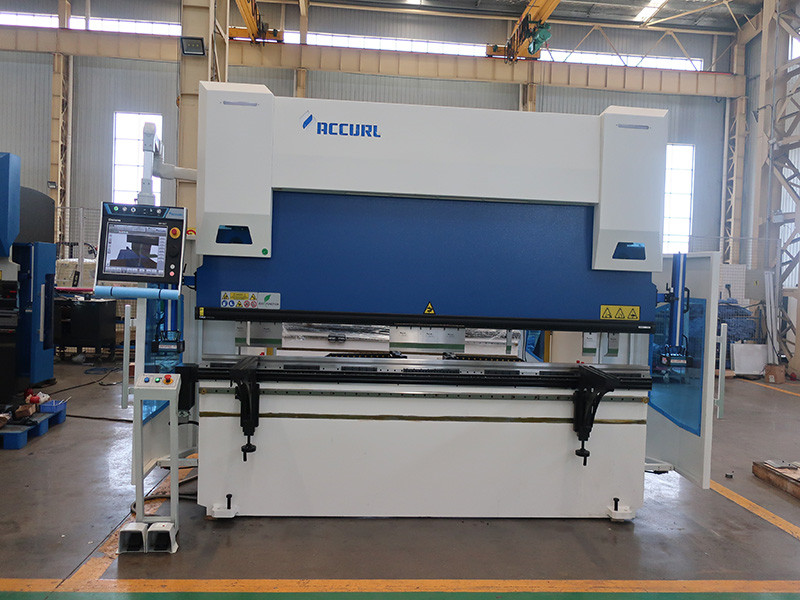

press brake for mild steel

Chinese New Hydraulic Integrated System Press Brake adopts full steel welding structure, vibration aging eliminate stress, good rigidity and high strength, and keep high precision.The entire frame rigid good, the work is smooth, safe and reliable, easy to operate.Introducing the principle of elastic mechanics to effectively control deformation of the structure, so it can obtain satisfactory bending member.

Chinese New Hydraulic Integrated System Press Brake’s mechanical synchronous mechanism is composed of torsion shaft and swing arm , simple structure, stable and reliable performance, high precision synchronous.

Other models' parameter

Specification
Nominal Pressure
Worktable Length
Distance between Columns
Throat Depth
Slider Travel
Main Motor Power
Unit
kN
mm
mm
mm
mm
kW
WC67Y-40/2000
400
2000
1700
200
100
4
WC67Y-50/3200
500
3200
2500
250
100
4
WC67Y-63/3200
630
3200
2500
250
120
5.5
WC67Y-80/3200
800
3200
2500
250
120
5.5
WC67Y-100/3200
1000
3200
2500
320
120
7.5
WC67Y-125/3200
1250
3200
2500
320
120
7.5
WC67Y-160/6000
1600
6000
4800
320
200
15
WC67Y-200/3200
2000
3200
2600
320
200
15
WC67Y-250/3200
2500
3200
2600
320
250
18.5
WC67Y-250/4000
2500
4000
3200
400
250
18.5
WC67Y-250/5000
2500
5000
4000
400
250
18.5
WC67Y-300/4000
3000
4000
3200
400
250
22
WC67Y-300/5000
3000
5000
4000
400
250
22
WC67Y-300/6000
3000
6000
4800
400
250
22
WC67Y-400/5000
4000
5000
4000
400
250
30
WC67Y-400/6000
4000
6000
4800
400
250
37
WC67Y-500/6000
5000
6000
4800
400
300
37
WC67Y-500/12000
5000
12000
Multiple columns
400
300
37
WC67Y-600/7000
6000
7000
5600
400
300
45
WC67Y-700/7000
7000
7000
5600
400
300
45
WC67Y-800/6000
8000
6000
5600
500
400
55
WC67Y-1000/6000
10000
6000
5600
600
500
75

Main parts

Slider part
WC67Y-160/3200 hydraulic plate bending machine adopts hydraulic drive, slider part consist of slider、hydro-cylinder and mechanical stop dog fine-tuning structure. Its length can be adjusted, does to the workpiece which do not need too long travel , adjusted by the mechanical stop dog, can significantly improve the work efficiency. Right and left oil cylinder fixed on the frame, through the hydraulic system to make the piston drives the sliding block moves up and down.
Worktable parts

There are three compensation cylinders equipped on the worktable riser , can achieve better bending effect.
Worktable operate through the button box in front of the worktable, to make the motor drive retaining rack moves back and forth, and by digital display mobile distance, there are travel switch limit position in both before and after.
Back-gauge part

back-gauge part using motor to drive, through the sprocket drive two screw synchronous moving, counter displays the size of keep-off, can manual fine tuning.

Working environment

1.Working voltage: 380V，50HZ，magnitude of a voltage fluctuation ±10%.

2.Environment temperature: 0℃～+40℃.

3.Relative humidity: 20-80%.

4.Less dust, harmful and corrosive gas.

5. Away from the strong earthquake and electromagnetic interference.

Quick Details

Condition: New
Place of Origin: Anhui, China (Mainland)
Brand Name: ACCURL
Model Number: WC67Y-160/3200
Machine Type: Press Brake
Raw Material: Sheet / Plate Rolling
Material / Metal Processed: Carbon Steel
Power: Hydraulic, Hydraulic
Automation: Automatic
Extra Services: End Forming
Certification: ISO 9001:2000
After-sales Service Provided:Engineers available to service machinery overseas
Worktable length: 3200mm
Nominal pressure: 1600KN
Throat Depth: 320mm
Dimension(L*W*H): 3300X1600X2850mm
Slider Travel: 200mm
Weight: 9T
Product name: Chinese New Hydraulic Integrated System Press Brake Low Price
Key words: Chinese new press brake low price
Automatic or Manual: Automatic
