cnc steel bending machine DA66T control cnc press brake 1600/6000”

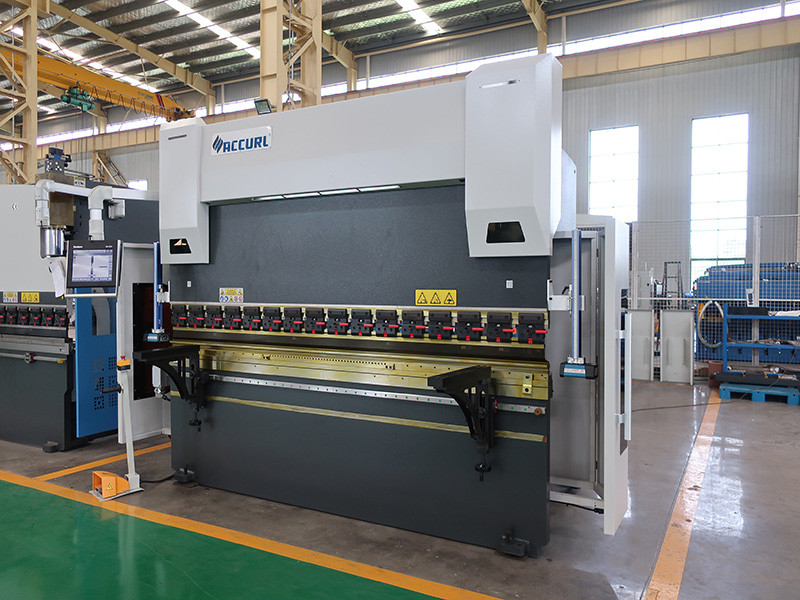

tandem hydraulic press brake

Features:

-Designing by ACCURL, and Optimizing by simulation model - ASTM283M Gr.D steel to be used for fully welded
- Table, Upright & Ram designed as full rigidity to ensure full loading working
- Right-and-left oil cylinder synchronization achieved by separated Germany electrical-hydraulic proportional valve with high stability .
- Fully closed loop control with high precision
- Advanced ball touching connecting between ram and oil cylinder to ensure piston vertical moving when
processing tapered workpiece
- Mechanical wedge crowning on table to attain precision compensation.
- Crowning value adjusted automatically by V axis to raise the precision of workpiece.
- Large throat- Sharp top tool
- Manually adjustable opening bottom tool
- Powered steel rope side out feeding
- Motorised front feeding and back feeding

Patents on our press brake in tandem:

- Connecting structure of upright (Chinese national patent No. ZL 2009 2 0222143.1)
- Advanced ram main guiding system (Chinese national patent No. ZL2009 1 0261552.7)
- Workpiece jack-up mechanism in bottom tool after pressing (Chinese national patent No. 2011 2 05608636)

Tachnical Specifications

Nominal pressure	2×16000kN
Length of table	2×7000mm
Distance between uprights	4800 mm
Throat	1600 mm
Stroke of ram	400 mm
Max. open heigh	1340 mm
Speed:	Approaching 60mm/s Working 6mm/s Returning 50mm/s
Main motor power	2×55kW
Overall dim.(LWH):	15000×5700×6400
Weight	375000 kg

Tachnical date(2-WE67K-300t-2000t)

Name		2-WE67K-300/3200 300/4000 300/5000 300/6000	2-WE67K-400/4000 400/5000 400/6000 400/7000	2-WE67K-500/4000 500/5000 500/6000 500/7000	2-WE67K-650/5000 650/6000 650/7000 650/8000	2-WE67K-800/6000 800/7000 800/8000 800/10000	2-WE67K-1000/6000 1000/7000 1000/8000 1000/10000	2-WE67K-1200/6000 1200/7000 1200/8000 1200/10000	2-WE67K-1600/6000 1600/7000 1600/8000 1600/10000	2-WE67K-2000/8000 2000/10000
nominal pressure(kN)		2×3000	2×4000	2×5000	2×6500	2×8000	2×10000	2×12000	2×16000	2×20000
Length of table(mm)		2×3200 2×4000 2×5000 2×6000	2×4000 2×5000 2×6000 2×7000	2×4000 2×5000 2×6000 2×7000	2×5000 2×6000 2×7000 2×8000	2×6000 2×7000 2×8000 2×10000	2×6000 2×7000 2×8000 2×10000	2×6000 2×7000 2×8000 2×10000	2×7000 2×8000 2×10000 2×12000	2×8000 2×10000
working table width(mm)		300	400	400	400	550	550	600	600	800
Distance between uprights(mm)		2680 3380 4000 4800	3200 4000 4800 5100	3200 4000 4800 5100	4000 4800 5100 6100	4800 5100 6100 7800	4800 5100 6100 7800	4800 5100 6100 7800	4800 5100 6100 8000	6100 8000
Throat depth(mm)		400	400	1100	1100	1200	1600	1600	1600	1600
Ram stroke(mm)		250	320	350	320	400	400	400	400	400
Open hight(mm)		520	630	1000	1000	1210	1340	1340	1340	1340
Ram speed(mm/s)	Approaching	100	60	60	60	80	70	60	60	60
	Working	8	7	7	7	8	8	6	6	6
	Returning	100	55	55	55	80	80	60	50	50
Main motor power(kW)		2×22	2×30	2×37	2×55	2×55	2×37	2×45	2×55	2×55
Overall dimensions(mm)	Length	2×3500 2×4500 2×5500 2×6500	2×4400 2×5400 2×6400 2×7400	2×4500 2×5500 2×6500 2×7500	2×5500 2×6500 2×7500 2×8500	2×6500 2×7500 2×8500 2×10500	2×6500 2×7500 2×8500 2×10500	2×6500 2×7500 2×8500 2×10500	2×7500 2×8500 2×10500 2×12500	2×8500 2×10450
	Width	2260	2360	2600	2930	3800	4500	4600	5700	6200
	Hight	3400	3780	4400	4500	5600	5700	5900	6400	6600
Weight(kg)		41000 46000 53000 62000	57000 65000 75000 83000	96000 106000 116000 128000	131000 143000 155000 167000	190000 200000 210000 230000	250000 262000 275000 300000	268000 285000 300000 300000	375000 390000 405000 435000	490000 530000

Standard configuration

- CNC system DA52 up,Delem,Holland/DNC880S,Cybelec, Switzerland/ESA S530,Italy
- Electrical-hydraulic proportional synchronous valve group: Hoerbiger/Bosch,Germany
- Main electrical components: Schneider
- Optical scale: Givi, Italy
- Oil pump: Nachi,Japan
- Main oil cylinder seal ring: NOK,Japan
- Electrical cabinet wind cooling

Options

-Throat depth
- CNC front and back feeding controlled by axes
- Easy cycled side out feeding mechanism
- Workpiece jack-up mechanism in bottom tool after pressing
- Laser marking for pole pressing
- Oil cooler/warmer

Production technological process

Steel plate to warehouse →physical & chemical inspection→steel plate ball blasting (dustproof) processing →cutting through CNC flame cutting machine →cutting and processing to each welding junction plane →compound welding→Air protecting welding →Stress relief by electrical furnace →processing through heavy-duty floor type boring and milling machine, heavy-duty gantry milling machine →Fabrication.

Packing:Coating with anti-rust oil on working surface, with plastic film layer for whole machine. Packed in container and In bulk.
