delem cnc controller aluminum profile bender machine and cnc press brake with DA52S

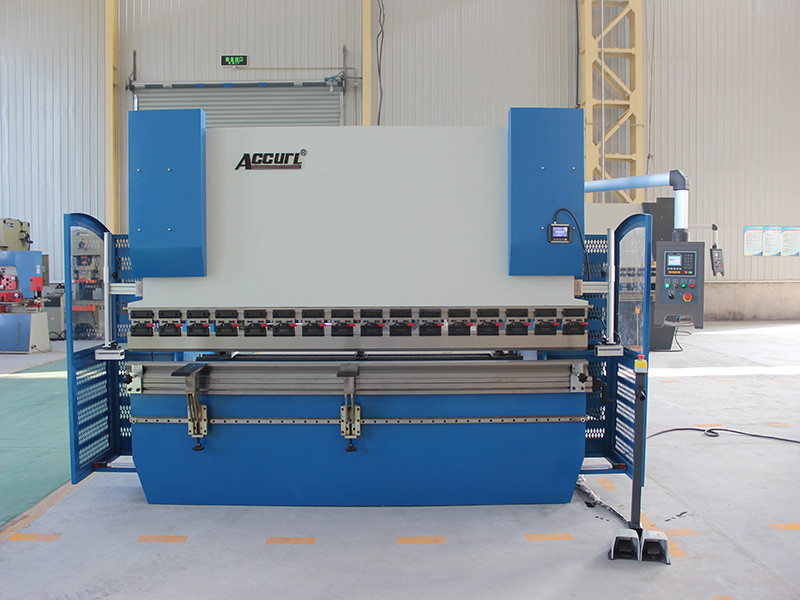

heavy duty cnc press brake

Features

1.Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.

2.Hydraulic synchronised positive stop design,and by DELEM programmable controller assuring accurate repeatability &ease of use.

3.Integrated hydraulic system(Bosch-Rexroth form Germany)allowing rapid approach switching automatically to slow bend.

4.Servo drive with da52s System operated back gauge with quality support fingers also with vertical adjustment

5.Inch, single mode being designed for the machine and servo and maintain time can be controlled by the server Driver.

6.the distance of upper slide moving down is adjusted by grating ruler with high precision

7.Safe fence and the electric inter locker have been designed for the machine to ensure the operation safety.

Delem DA52S CNC Control system

1.The compact DA-52s is a complete CNC solution for conventional as well as synchronised press brakes.

2.The panel based control, capable of controlling up to 4 axes, can be integrated in cabinets as well as in an optional pendulant arm housing.

3.Equipped with the Delem user-friendly user interface, the DA-52s provides all main press brake functionality.

4.The unique ‘hotkey’ navigation gives direct access to the programs in memory and enables quick and easy programming of a product. All common bend parameters are located on one page. For advanced parameters an additional page can be selected.

5.Angle programming of the Y-axis, crowning function and pressure control are standard on board.
USB interfacing enables the use of memory sticks as a fast product and tool backup medium.

DA-52S features

1.Quick, one page programming

2.Hotkey navigation

3.7” VGA colour TFT

4.Up to 4 axes (Y1, Y2, and 2 auxiliary axes)

5.Crowning control

6.Tool/material/product library

7.USB, peripheral interfacing

8.Advanced Y-axis control algorithms for closed loop as well as open loop valves

Quick Details

Condition: New
Place of Origin: Anhui, China (Mainland)
Brand Name: ACCURL
Model Number: cnc press brake with DA52S
Machine Type: Press Brake
Raw Material: Sheet / Plate Rolling
Material / Metal Processed: Aluminum
Power: Cnc
Automation: Automatic
Extra Services: Machining
Certification: ISO 9001:2000
After-sales Service Provided: Engineers available to service machinery overseas
machine type: Delem cnc controller aluminum profile bending press brake machinery
Nominal force: 125Ton
Throat depth: 320mm
Worktable length: 5000mm
Color: Optional
control system: optional E21,E210, DA41,MD320
Material: Q235
Voltage: 220V/380V/400V
Warranty: 5 Years
Name: cnc press brake with DA52S
