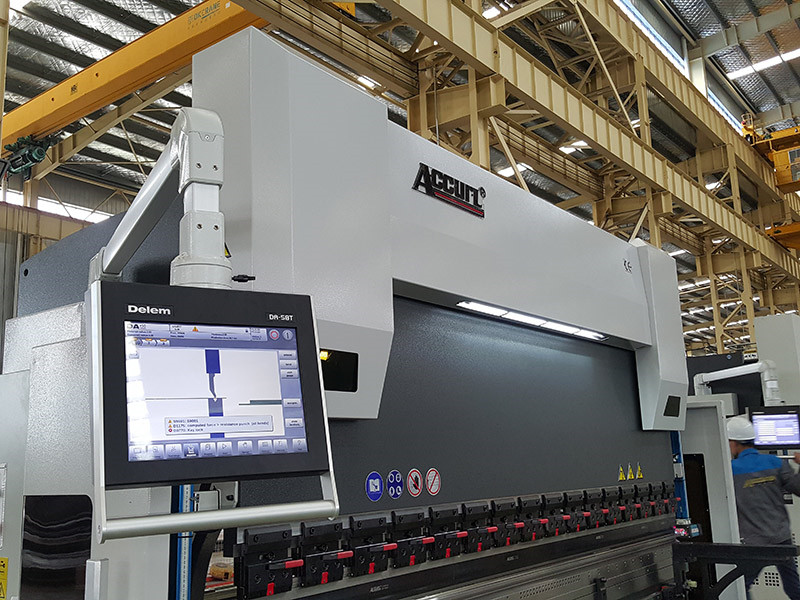

Delem DA52 hydraulic bending machine, accurate positional Horizontal press brake price, cnc angle iron

accurate press brake

Main Feature

1. The frame is steel structure, left and right vertical plate, table and pressure plate welded into a unitary structure, after welding to eliminate internal stress by tempering, exceptional rigidity, high stability.

2. Important parts of the frame, sliders, etc. are used ANSYS finite element analysis software to ensure machine reliability.

3. Hydraulic drive, cylinder on both end of machine, disposed on the slider to drive it work directly.

4. Torsion axis synchronization for slide synchronous mechanism.

5. Adopt a mechanical stopper mechanism, stable and reliable.

6. Back Gauge size and slide stroke controlled by CNC system, back gauge with high precision ball screw, stable operation and precise positioning.

7. The CNC system adopts frequency conversion control technology, with multi-step programming function, simple and easy to operate.

8. Inclined wedge deflection on the compensation mechanism, in order to guarantee access to high bending accuracy

9. Safety barrier device all around the machinery, electrical cabinets equipped with Open door cut-off function, emergency stop button around front and back, protective cover foot switch to ensure safe working.

Technical Parameter

NO
Item
Value (for WC67K-100T/3200)
Unit
1
Nominal force
1000
KN
2
Worktable length
3200
mm
3
Worktable height
850
mm
4
Slider stroke
100
mm
5
Max opening height
320
mm
6
Slider stroke adjustment
75
mm
7
Distance between columns
2600
mm
8
Throat depth
320
mm
9
  Slider speed
V-working:9,  V-return: 45, V-unload: 50
mm/s
10
Main motor
Y160M-6     n=960r.p.m      N=7.5KW
11
Oil pump
25MCY14-1B   q=25ml/r      p=25Mpa
12
System max pressure
25
Mpa
13
Dimension
3200×1600×2450
mm

Main Outsourcing parts

NO
Part Name
Outsourcing
1
Hydraulic system
German REXROTH
2
Oil pump
USA SUNNY
3
Seal ring
Japan VALQUA
4
Tubing connector
German EMB
5
Electrical
Schneider
6
Ball screw
Taiwan HIWIN
7
Linear guide
Taiwan HIWIN
8
Servo motor
 ESTUN
9
NC system
Estun E21( More CNC system for optional )

Standard Configuration

1. Estun E21 NC control system;
2. Powered Depth Y-axis & Back gauge X-axis;
3. DELTA Inverter controlled back gauge;
4. HIWIN Ball screws & Polished rod;
5. Plate support arms;
6. Bosch-Rexroth hydraulic system;
7. Germany EMB tubing connector;
8. Siemens main motor;
9. Schneider electrics;
10. USA Sunny oil pump;
11. Hydraulic & Electrical overload protection;

Safety Equipment

1. Safety starndards(2006/42/EC):
1). EN 12622:2009+A1:2013
2). EN ISO 12100:2010
3). EN 60204- 1:2006+A1:2009
2. Front safety fence/Safety light curtain(Optional);
3. South Korea Kacon foot switch;
4. Back safety fence;
5. Relay equipped with safety switch and protection device.

Quick Details

Condition: New
Place of Origin: Anhui, China (Mainland)
Brand Name: Accurl
Model Number: WC67K
Machine Type: Press Brake
Raw Material: sheet plate
Material / Metal Processed:Stainless steel, aluminum steel, alloy steel, iron steel, etc
Power: Hydraulic
Automation: Automatic
Extra Services: Punching
Certification: CE
After-sales Service Provided: Engineers available to service machinery overseas
Name: hydraulic bending machine, accurate positional Horizontal press brake
Application: Metal sheet bending
Safety protect: Protective guard
Color: Customizable
Motor: SIEMENS BEIDE
Electric appliance: SCHNEIDER
Hydraulic system: REXROTH
Sealing element: NOK
