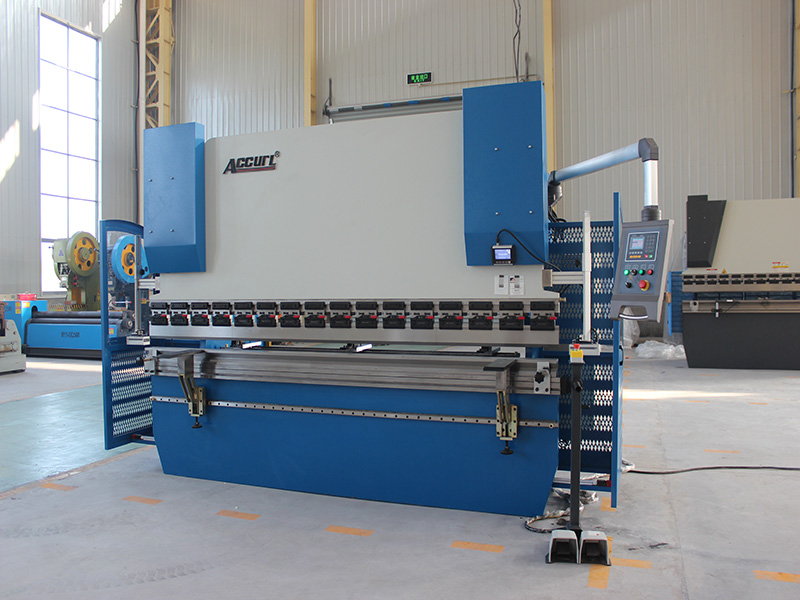

with E200 system Wc67 hydraulic press brake

press brake e200

1.Main Features:

1)Totally EU streamlined design,monoblock by welding robots & apparatus and stress relief process by annealing treatment.

2)WC67K Series are among the highest rated machines which will help you increase your

productivity and keep the cost at a minimum level with its user friendly CNC controller and low cost

hydraulic maintainance.

3) Automatic axis referencing and calibrating when machine is turned on.

4)Rigid upper beam runs on 8-point bearings with bending precision of 0.01 mm

5)Well-known top and bottom tool brands are long lasting stiffened and provide precise

bending.Silent high pressure pump.

2. Hydraulic system:

1)Hydraulic control system by BOSCH-REXROTH Germany .

2) Oil seals by Japanese, NOK.
3)Overload & overflow protection to ensure there is no leakage and protect hydraulic system;

3.Servo motorized back gauge:

1) CNC back gauge system with X axis by AC servo motor driven ball screw shafts and on linear bearings with an accuracy of 0.01mm.2) Back gauge has good enough mechanical strength and rigidity with tank-type gauge structure.
3) High-precision ball screw and linear guide-way. Particular finger-stop design for safety, enlarge the range of back gauge.

4.Electrical parts and protection device:

1) Schneider or Siemens low voltage apparatus. In accordance with international standards, reliable safety,long life, good anti-interference ability, a radiation unit is fitted in electrical cabinet.
2) Protective fence and the safety interlock to ensure the operation safety. With a movable single-hand pedal switch,it is easier to operate the machine.
3) Light screen protection

Sales service:

1) Installation Service
If you need,we dispatch technician to customer's factory for installation and preparation of machine operation. ( Customers only need to pay for the air fare and hotel .)
2) Training Service
You may send your technician to our company to learn how to operate machines.
Or our technicians are available to your factory and provide training on how to use the machine.
3) Quality Guarantee
We arrange final test before shipment. we arrange shipment after determine the machine is in the best condition.Machine warranty is 3 years.A lifelong free maintenance.

Basic Info

Model NO.: WC67K-160T/3200
Warranty: Lifetime
Certification: ISO 9001:2000, CE
Suitable for: Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Raw Material: Steel Bar
After Sales Servers Provide: Engineers Available to Service Machinery Overseas
Weight: 9200kgs
Product Name: CNC Press Brake
Transport Package: Export Standard Package
HS Code: 84621990
Waterproof Rating: IPX-8
Condition: New
Automation: Automatic
Type: Cnc Bending Machine
Power: CNC
Color: Optional
Dimension: 3260X1750X2350
Trademark: ACCURL
Origin: Made in China
