EASY-FAB P25 siemens,fanuc controller cnc turret punching machine, punch press

cnc turret punch press

Product Description

EASY-FAB P25 Siemens/Fanuc Controller CNC Turret Punching Machine/Punch Press

In order to get the most accurate quotation and the most professional solution, pls indicate beblow quetions:

1. what is the material of your plate?

2. what is the shape of your hole?

3. what is the max length, width, thickness of your plate?

4. what is the max hole diameter of your hole?

5. Please send to us your hole drawings.

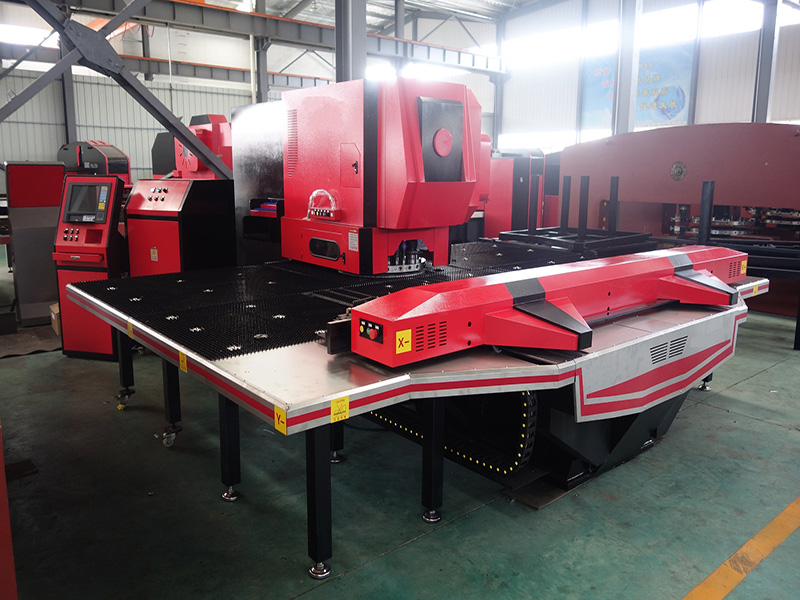

CNC Turret Press D-EASY-FAB P25 machines is an outstanding machine for punching and forming. And it is ideal for manufacturing a variety of products such as precision enclosures, control cabinets, and aerospace parts.

Description and Features

High Speed, Reliable and Good Cost-Effective.

2016 new designing, nice appearance

Mechanical punching press, stable, reliable and easy for operation and maintenances

Independently developed CNC system.

Metform Automatic reposition function, better for large volume production.

Unique designed, metform automatic adjustable auxiliary table, for convinience of exchanging mould.

O type close press house, weld structure, stress relief annealed.

Specific clamp retract function. metform automatic protection for the Clamps and no dead area for punching on sheet.

Centralized lubricating system

Specification

NO.	Name	Unit	Specification
1	Press Capacity	KN	300
2	Frame Construction		O-Frame
3	Maximum Sheet Size (with one re-position)	mm	1250x5000
4	Maximum Sheet Thickness	mm	4
5	Max. Sheet Diameter	mm	Φ88.9
6	Stroke Length	mm	40
7	Max. Punching Speed	hpm	280 (step distance 30mm, 40mm stroke)
8	Max. Feeding Speed	m/min	80
9	Clamps No.	pcs	2
10	Re-positioning Cylinder	set	2
11	No. of Stations	set	16/24/32
12	Turret Rotation Speed	rpm	30
13	Turret Positioning		Double cylinder positioning
14	Air Pressure	mpa	0.6
15	Die Form		Mosaic turret, Long guide tool
16	Punching Accuracy	mm	±0.10
17	No. of Controlling Axis	pcs	3(X/Y/T)/4(X/Y/T/C)
18	Total Power	kw	13/14

Tool List:

Station	Tool size	16 stations	24 stations	32 stations
A	Φ1.5 - Φ12.7	6	12	16
B	Φ12.7 - Φ31.7	6	8	12
C	Φ31.7 - Φ50.8	2	2	2
D	Φ50.8 - Φ88.9	2	2	2
Layout

• High precious positioning possibility with linear sledge system on all axis.

• Platform type on bridge side or Portable CNC control panel

• CNC control outputs/inputs for vacum table & filtering unit

• High vacuming capability with lower energy consaption

• Independent cutting table system

• Multi head Plazma and multi head oxy fuel cutting possibilities.

• +/- 0.1mm positioning accuracy.

• +/- 30m/min positioning speed.

Basic Info

Model NO.: D-T30
Performance Classification: High-End CNC Machine Tools
Certification: ISO 9001
Condition: New
Station: 12/16/24/32
Throat Depth: 1250/1500/2000mm
Delivery Time: 60 Days After Confirm All Details
Size: 4800X4000X2300mm
Trademark: Accurl
Transport Package: Pallet
Specification: Weight 13Ton
Origin: Anhui, China
HS Code: 8462411900
