foot operated hydraulic sheet metal cnc press brake,specification plate press brake

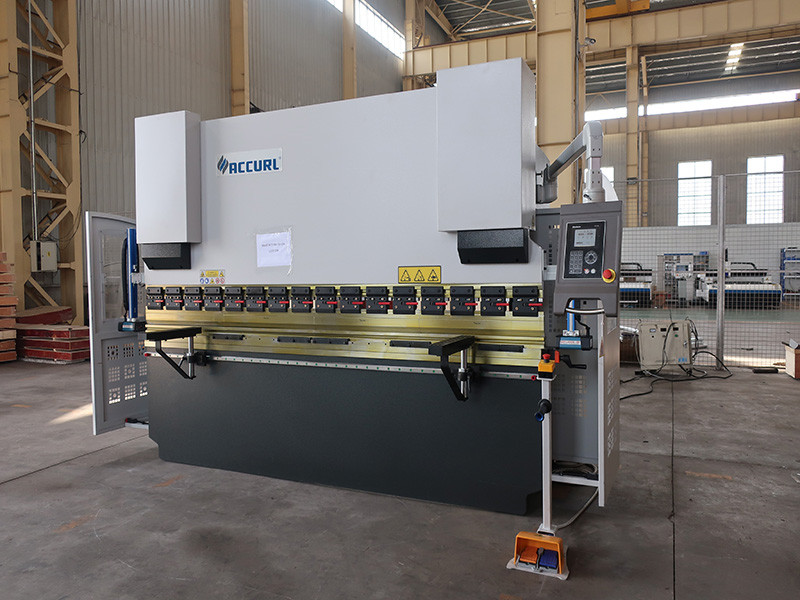

foot operated sheet metal press brake

Our Advantages

section rolling machine
1. Overal welding structure
2. Closed loop control mode formed by Gemany electro-hydraulic servo valve and import grating ruler. The slider position have high precision feedback, stable operation, good synchronization performance, high precision of bending and slider repeat positioning.
3. Back gauge can use multi back gauge axis with more function according to customer requirements..
4. Hydraulic system uses integrated control system which can reduce pipeline installation, overcome the leakage and ensure the stability of machine operation. And it has a simple and beautiful appearance also.
5. The automatic compensation mechanism of Hydraulic defection has eliminated the effect of the slider deformation on the workpiece quality. The numeric control system adjusts the compensation amount automatically which is convenient and accurate.
6. The numeric control system adopts the special CNC system of Electrohydraulic Servo Numeric-control bending machine from Holland DELEM, Italy ESA or Switzerland CYBELEC.

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

CNC Control System

DA-52 (Holland DELEM )           DA-56(Holland DELEM )            DA-65W(Holland DELEM )     DA-69W(Holland EDLEM )                     KV S525            KV S540(Italy ESA )

Technical Specific

Model
63T/2500
80T/3200
100T/3200
160T/3200
200T/3200
250T/3200
Nominal Force (KN)
630
800
1000
1600
2000
2500
Bending Length (mm)
2500
3200
3200
3200
3200
3200
Poles Distance (mm)
1900
2700
2700
2700
2700
2700
Throat Depth (mm)
350
350
400
400
400
400
Stroke Travel (mm)
170
170
200
200
200
200
Work table Height (mm)
800
800
800
800
800
800
Die Loading Height (mm)
380
380
420
420
420
420
Main Motor Power (kw)
5.5
7.5
7.5
11
15
15
Compensatin cylinder No.
2
3
3
3
3
3
Axes
3+1
3+1
3+1
3+1
3+1
3+1
Back Gauge*Travel (mm)
500
500
500
500
500
500
Back Gauge Speed(mm/s)
200
200
200
200
200
200
Outline Dimension(mm)
3100*1450*2050
3500*1550*2100
3500*1580
*2400
3500*1650
*2500
3500*1680
*2550
3500*1700
*2600

Due to continuous improvement, discrepancy exists between above data and the actual machine data, the technical parameters on the agreements shall prevail.

Technical documents included

1.Manual instruction (including hydraulic scheme, schematic circuit diagram and machine base map.
2.Verification certificate.
3.Packing list (including the technical documents).
4.Machine color is standard and is customerized according to customer's requirements.

Technical training

Tenroy company is responsible for the user operator training and also we will provide a training software to you.

Quality assurance

Our company is responsible for the maintenance during the use period (damage that caused by improper operation, the user should bear the repair charge). Warranty is 12 months after the end debugging.

Quick Details

Condition: New
Place of Origin: Anhui, China (Mainland)
Brand Name: ACCURL
Model Number: WE67K
Machine Type: Press Brake
Raw Material: Sheet / Plate Rolling
Material / Metal Processed: Carbon Steel
Power: Cnc
Automation: Automatic
Extra Services: End Forming
Certification: CE
After-sales Service Provided: Engineers available to service machinery overseas
Name: section rolling machine
Type: CNC Hydraulic
Usage: Sheet Folding
Material: Mild Steel
Available bend profiles: Special Profile
Warranty: 1year
Keyword: foot operated hydraulic sheet metal cnc press brake
Color: Customized
Function: Steel Metal Bending
Item: Press Brake Bending Marchine
