hand hydraulic press brake WC67Y-125T/3200

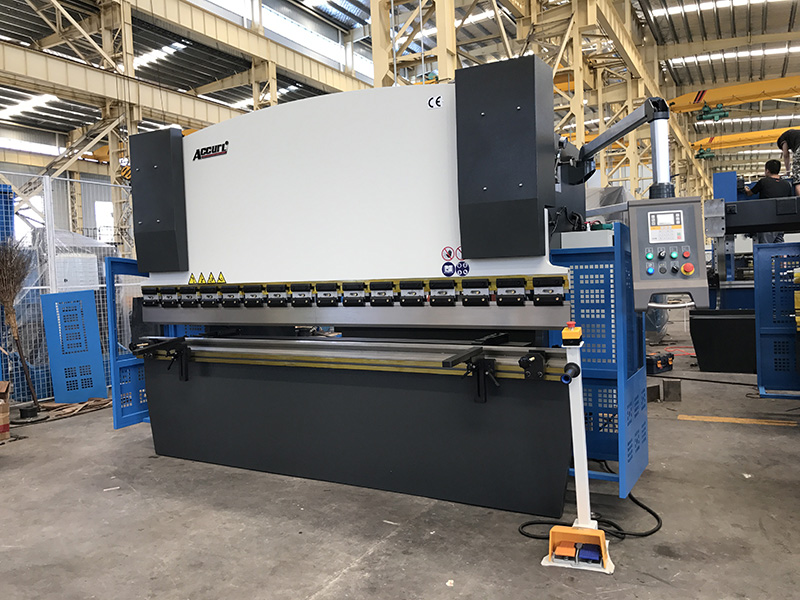

hand press brake

The whole structure of the hydraulic press brake

- Totally European design, streamlined looking,Monoblock,Welded steel frame rigid to deflection moment and high tensile with ST44 A1 material.

-CNMazak PRESS BRAKE incorporates E210 or DELEM DA41 CNC controls offer not only failsafe operation of the vital operations of the machine,but also offer the operator considerable assistance in carrying out the entire bending process.

- High accuracy,high efficiency,simple and convenient operation,good performance, favorable price and best service.

- Provides CNC control of standard 2 axes (Y and X) with manual R axis.

1. Hydraulic system:

- Adopt integrated hydraulic control system, more reliable and easy for maintenance.Hydraulic system is from Bosch – Rexroth,Germany.

- Extremely reliable and precise Bosch – Rexroth valves are used for the regulating circuit. Every complete working cycle can be achieved through the control of hydraulic valve.

- All seals in cylinder is PARKER from USA,the most famous brand,good quality and high performance

- Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly.

Being able to work under rated load continuously,stable working and high precision.

2. Electrical system and the safety interlock:

- Electrical panel with cooling system designed to meet CE Standards and composed of automation and electrical equipments with SIEMENS

brand.

-Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.

- Front Side Covers with safety switches, Back light safety guards (Category-4),Foot pedal conforming to CE regulation.

- The machine by the European Union CE certification and ISO quality system certification

3. Synchro control system:

- Slide synchro system:adopt steel torsion bar synchro system, simple in structure and high in accuracy,ensures the parallelism between beams is used for the synchronism.

- 2 ends of slide has 2 synchro fork which make,The system uses upper die compensation to improve the brake precision.

- The worktable adopts the particular design,reducing the crowning distortion amount of lower tool effectively.

4. Bending depth adjustment and RAM structures:

- The bending accuracy and consistency of the repeatability are achieved by a simple mechanical system of adjustable depth Automatic (digit readout) and motorized (E210 or DA41 CNC Control) Adjustable.

- Can move the ram up slowly,which allows the operator to control work piece conveniently.

- Universal fixing-surface of the upper tool can be meeting with the clamping requirement of the tool farthest.

- Hardened and ground standard sectioned top and 4V-Die bottom tools (4x1000 mm sections).

5. Servo motorized Backgauge (standard)

- CNC Back gauge system with X axis by AC servo motor driven ball screw shafts and on linear bearings with an accuracy of 0.01mm.

- Back gauge has well enough mechanical strength and rigidity with tank-type gauge structure.

- High-precision ball screw and linear guide-way.Particular finger-stop design,enlarge the range of back gauge.

Main Specification

Models	Nomal Pressure (Kn)	Length of Table (mm)	Distance Between Housing (mm)	Throat Depth (mm)	Stroke (mm)	Open Hight (mm)	Main Motor (Kw)	Weight (t)	Overall Dimensions (L W H) (mm)
WC67K-63/2500	630	2500	2000	320	150	380	5.5	5	28751650*2350
WC67K-63/3200	630	3200	2700	320	150	380	5.5	5.5	380016502450
WC67K-100/3200	1000	3200	2700	400	180	440	7.5	7.5	381017502530
WC67K 125/3200	1250	3200	2700	400	180	440	7.5	8.2	382018002530
WC67K-125/4000	1250	4000	3200	400	180	440	7.5	9	460018002580
WC67K 160/3200	1600	3200	2700	400	180	450	11	10.8	383018702560
WC67K 160/4000	1600	4000	3200	400	180	450	11	11.5	461019202700
WC67K-200/3200	2000	3200	2700	400	180	450	11	12.5	390019202560
WC67K-200/4000	2000	4000	3200	400	180	450	11	13.8	462019502700
WC67K-200/6000	2000	6000	4800	400	180	480	11	18.5	608019502900
WC67K-250/3200	2500	3200	2700	400	200	480	15	15	390021502950
WC67K-250/4000	2500	4000	3200	400	200	480	15	16.5	408021503000
WC67K-250/5000	2500	5000	4000	400	250	560	15	17.5	508022003250
WC67K-250/6000	2500	6000	4800	400	250	560	15	20	608022003400
WC67K-300/4000	3000	4000	3200	400	250	560	22	19	408022003200
WC67K-300/5000	3000	5000	4000	400	250	560	22	21	510022003300
WC67K-300/6000	3000	6000	4800	400	250	560	22	24	620022003500
WC67K-400/4000	4000	4000	3200	400	320	630	30	25	410024003500
WC67K-400/5000	4000	5000	4000	500	320	630	30	28	520026003700
WC67K-400/6000	4000	6000	4800	500	320	630	30	38	620026504800
WC67K-500/4000	5000	4000	3200	600	320	630	37	40	420028004600
WC67K-500/5000	5000	5000	4000	600	320	630	37	45	520028004900
WC67K-500/6000	5000	6000	4800	600	320	630	37	50	620028005200
WC67K-600/5000	6000	5000	4000	600	320	630	45	58	520030005300
WC67K-600/6000	6000	6000	4800	600	320	630	45	63	620030005600
WC67K-800/5000	8000	5000	4000	700	350	800	55	75	520035005600
WC67K-800/6000	8000	6000	4800	700	350	800	55	85	620035005800
WC67K-1000/6000	10000	6000	4800	700	400	800	55	105

Our Services

1. Our provide oriented after-sales service including the oversea engineers trainning available and also international dealer center for any emergency guidance.We have established worldwide network to guarantee our timely response for your any demand no matter where are you.

2. We welcome engineers from your side to learn the technical design and normal maintenance here,this will help your easy in understanding and helpful if you need to be our dealer.

3. However,don't worry,we have our company own CD/Manual to show you along with the machine.So you can learn this from the existing docments to deepen your knowledge and understanding.

4. Anyhow there are another way is through internet video face to face for machine teaching, because of the high development in internet,the world has become smaller and you can easy contact us if any assistance needed.

5. Through all the ways,we will guarantee the service quality and ensure you will be well helped anytime anywhere.

FAQ

hand hydraulic press brake trouser press automatic steam press press machine steam iron second hand hydraulic press brake WC67Y-125T/3200

1. How about your machine quality?We are worry about the quality.

RE: ACCURL is a mature brand in CHINA,through our 20 years research in technology,our design including structure and detailed sercurity and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brillante machines.And where there are our machines,there are good reputation and terminal user satisfaction.

2. Whether the machine price can be more discount

RE: 1.ACCURL always provide high quality machine,as we know ,oversea market is more important and difficult than domestic market because of communication time costing after sales,So always,our machine has enough qaulity standard to make sure the machine can work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients.

RE:2. Actually ACCURL also think about our price level,we are sure to provide quality=price and pice=quality ,the matched price and acceptable for the clients and durable for our machines.We welcome your negotiate with us and get a good satisfaction.
