heavy duty cnc electric-hydraulic proportion press brake

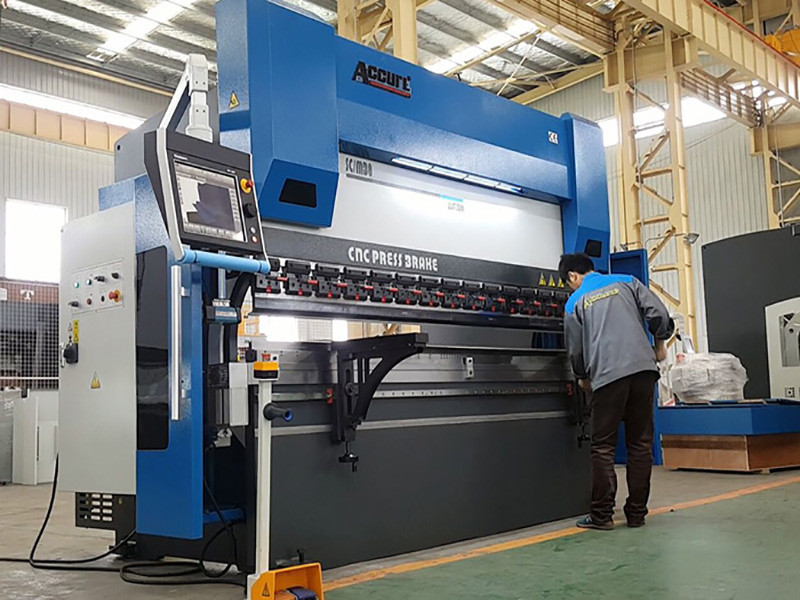

proportion cnc press brake

Product Description

1. COMPANY INTRODUCTION:

1. More than 12 years experience for Hydraulic Press and 16 years for sheet metal machinery
2. Total Number of Employee: 455
3. Number of R & D Staff: 26
4. Floor Area: 56, 765m2
5. New factory area: 61, 321m2
6. Whole factory is controlled by ERP-Enterprise Resource Plan

We are producing below ranges of machines:
1. NC Press Brake
2. CNC Laser Cutter
3. CNC Punch Press
4. CNC Shears
5. Hydraulic Press
6. Pipe & Roller Bender
7. Iron Worker
8. Automatic Production line

3 axis CNC Press Brake Delem DA52s CNC System Press Brake 4 axis Full Servo CNC Press Brake from MVD Press Brake.

ACCURL CNC Press Brake Characteristics:

The ACCURL CNC Synchro Press Brake use state-of- the-art hydraulics (Bosch-Rexroth or Hoerbiger) and electronics (Telemecanique, Merlin Gerin Legrand, Siemens) to ensure accurate control of the bending process. The Press Brake Frame is a robust welded mono-block steel construction, stress relieved after welding and machined without repositioning to guarantee machine precision, all-in-all, ensuring minimum deflection during bending operation. Pistons are steel forgings, precision ground and micropolished for long production life. The Synchronised Press Brake is a downstroking twin cylinder hydraulic pressbrake (Y1 – Y2 Axis) and includes the following:

The ACCURL CNC Press Brake machine configuration

1. CE Conformity including AKAS Light guards
2. Beam Synchronization via linear scales and proportional valves
3. Delem Angle Programming Control
4. Y1 + Y2 + X axis as standard, auto indexing of axis at start-up
5. Uro (System) Top and Bottom Tool Clamping
6. Hardened Gooseneck Top Tool and 4-V-die Bottom Tool
7. Servo motor driven back gauge on ball screws (=X-axis)
8. Crowning Table / Top clamping with anti deflection wedges
9. Side and rear safety guards and safety interlock switches

Optional equipment:

1. Control of additional axis like X1, X2, R1, R2, Z1 and Z2
2. Delem 65, 66, 69 and Cybelec 80, 1200, Modeva Series
3. Larger throat gap, higher daylight opening etc...
4. Quick manual or hydraulic Top Tool clamping
5. Additional back gauge universal finger blocks
6. Central motorised lubrication system

Delem CNC Press Brake DA-56 Control:

1. Delem DA-56 is a 2D graphical CNC system with CNC postprocessing.
2. The graphical programming, bend sequence computation and 2D simulation provide a user-friendly and fast programmable CNC for Press Brakes.
3. Programming the Delem DA-56 is simply drawing the profile of your product on the screen. Simulation of the bend sequence is done with the user-friendly bend determination tool. With one simple keystroke, the CNC program is calculated and stored.
4. The pendant Control Panel is conveniently located at the left-hand side of the machine within the immediate reach of the operator

Model		MB8-110 3200HP	MB8-110 4100HP	MB8-170 3200HP	MB8-170 4100HP	MB8-250 3200HP	MB8-250 4100HP	MB8-320 3200HP	MB8-320 4100HP
Nominal pressure KN		1100	1100	1700	1700	2500	2500	3200	3200
Max.bending width mm		3200	4100	3200	4100	3200	4100	3200	4100
Distance between uprights mm		2700	3600	2700	3600	2700	3600	2700	3600
Opening height mm		700	700	700	700	700	700	700	700
Throat depth mm		400	400	400	400	400	400	400	400
Cylinder stroke mm		400	400	400	400	400	400	400	400
Main power KW		11	11	15	15	18.5	18.5	22	22
Oil volume L		280	280	280	280	420	420	420	420
Speed mm/s	Approaching	185	485	160	160	125	125	90	90
	Working	10	10	10	10	9	9	9	9
	Returning	160	160	140	140	120	120	115	115
dimension mm	Length	4130	5030	4150	5050	4170	5070	4190	5090
	Width	1800	1800	1850	1850	1940	1940	2030	2030
	Height	3150	3150	3160	3160	3280	3280	3330	3330
Weight Kg		10200	11850	12100	14000	15700	18200	18800	22100

Basic Info

Model NO.: 160 tons
Type for Pipe and Tube Bending Machine: Hydraulic Press Brake
Condition: New
Nominal Pressure: 160 Tons
Bending Length: 3200 Mm
Delem Da56s CNC System: Y1+Y2+X+R Axis+W Axis
Main Motor(Siemens): 5.5 Kw
Dimension (L*W*H): 2500*1300*2210mm
Weight: 4000kg
Trademark:ACCURL
Specification: CE & SGS
Origin: Anhui Maanshan
HS Code: 846229900
