high quality portable small 30 Ton CNC bending machine , small press brake instock

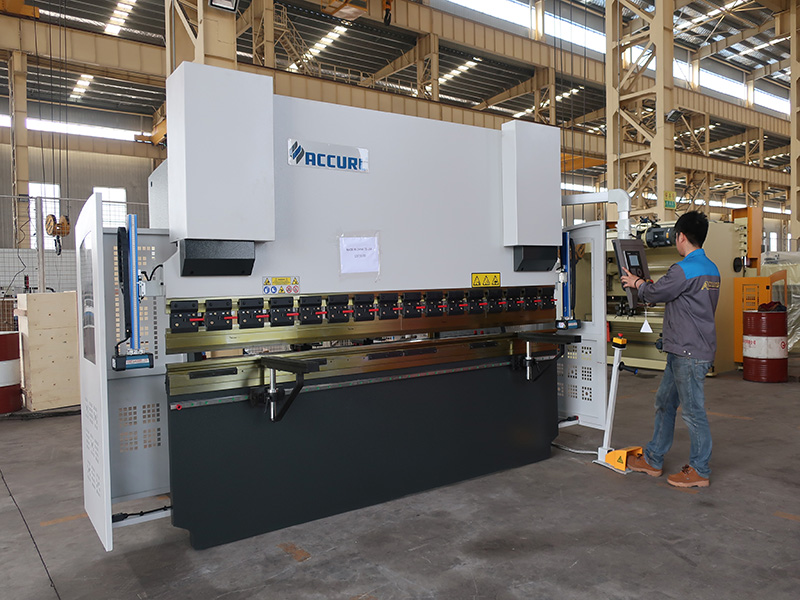

portable 30ton press brake

Features

1.All Steel Welded, Vibration eliminate stress, high mechanical intensity, good rigidity.Hydraulic upper
transmission, steady and reliable.
2. Mechanical stop dog, synchronization in twist axis, high precision.
3.Back gauge distance, upper ram stroke can be adjusted by motor-drive,manual operation micro-adjust
equipment, numerical display.
4.WE WORKTABLE full deflection compensation

Basic Main Components

1.NC display: Korea
2 Main Seal: PARKER
3.Main electronic element: Siemens/Schneider
4 Main Motor
5 Group valev
6.Conjugate internal gear pump
7.Back gauge
8.Mould
9.Oil cylinder
10.Front Plate Feeding will be equipped
11.Free charge Standard Upper and Down Mould

Main Character and Function

All the components of the machine are designed under the instruction of the Computer aided design and software of CAD/CAE/CAM to fully guarantee the intensity and rigidity of all the components.

The whole body under total wielded, thickness and reliable in machine body with high-rigidity and good in shock absorption reduction.

The machine structure are composed by body frame, working table, slide block, main cylinder and backgauge.The advantage design and produce style can ensure the machine usage and high precision.The main produce procedure as below(all process under strictly inspection)
Plate stock----physical and chemical inspection----Plate Pre-treatment (Rust-Cleaning) --- CNC flame Cutting-- Cutting the welded joint----Group Welding----Gas Shielded Welding---Ageing treatment----Milling Planer working----The Assembly of finished products
The machine body, Slide Block, Working table and other main components are under one time clamping of large landing boring and milling machine to ensure several geometric accuracy of the main machine.

The machine is greatly enhanced in anti-torque and electronic load resistance. Machine can normally work in full loaded situation. Working table, Upright Column, Crossbeam and Ram are good and high in design rigidity. Little deformation between the working table and ram when work to guarantee good straightness and uniformity in angle.

Machine’s main components under guaranteed quality or trustable company

The motor and electronic system elements are all composed from Siemens or Schneider
Dies can be designed under clients’ requirement.
Oil pump can be used from China chengjie enterprise who is used in China’s Aircraft industry.Or we can use Germany ECKERLER enterprises.
The seal will be from USA Parker or Japan Valqua company.
The hydraulic system and valve optional Germany BOSCH company.
The security protection equipment: We equipped protect fence to avoid any penetration inside and foot controller with emergency control button

Quick Details

Condition: New
Place of Origin: Anhui, China (Mainland)
Brand Name: ACCURL
Model Number: WC67Y
Machine Type: Press Brake
Raw Material: Sheet / Plate Rolling
Material / Metal Processed: Stainless Steel
Power: Hydraulic
Automation: Automatic
Extra Services:Heat Treating
Certification: ISO 9001:2000
After-sales Service Provided: Engineers available to service machinery overseas
Model type: hydraulic press brake
Column spacing: 2560mm
Throat depth: 320mm
Slider stroke: 100mm
Max.openging height: 350mm
Main motor power: 7.5KW
Dimension(L*W*H): 3200*1500*2300mm
Color: Optional
Application: Die Making Die Cutting Bending Machine
Warranty: 2 Years
