hot sale metal sheet hydraulic shearing machine (QC11Y-16X3200)

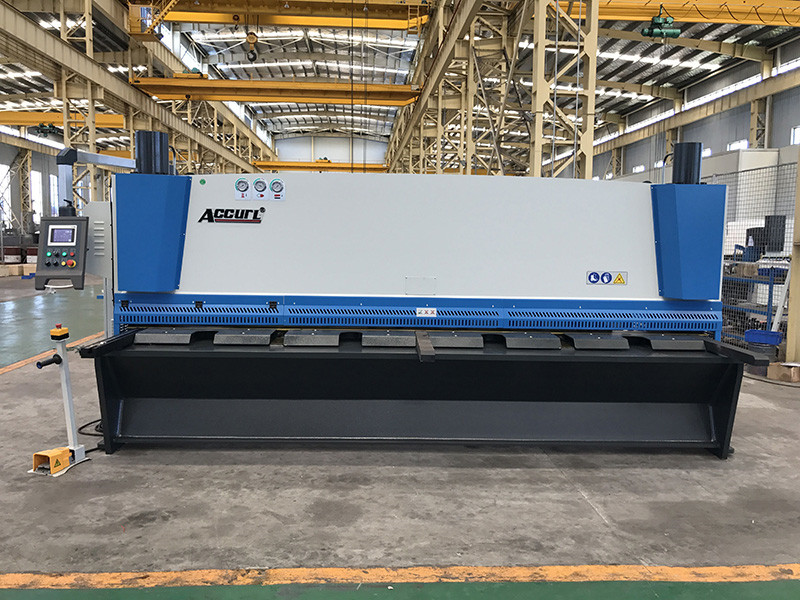

metal hydraulic shearing machine

PRODUCTION DESCRIPTION

1. All steel welded structure, vibrating treatment of ageing for removal of internal stress, with good rigidity and stability, European design.
2. Guillotine beam design
3. Integration hydraulic transmission system, with good reliability.
4. Triple support rolling guide to eliminate gaps of support and enhance shearing quality.
5. Motorized back gauge with digital show
6. Manually blade clearance adjustment
7. Variable shearing angle to reduce the deformation of the shearing piece
8. Upper knife carrier with inward structure, it's facilitate to feed the material
9. Function of shearing in sections, function of aligning with light.
10. Counter controlling the number of shearing
11. Four cutting edges blade to prolong working life
12. Foot pedal with emergency stop

TECHNICAL PARAMETER

NO.	NAME	PARAMETER	UNIT	NOTE
1	Max.shearing Thickness	16	mm
2	Max shearing width	3200	mm
3	Strength of shearing sheet	ób≤450	Mpa
4	Shearing angle	1°-2.5°
5	Max length of back gauge	20-780	mm
6	Number of stroke	6-10	min-1
7	Blade length	3300	mm
8	Height of work table	900	mm
9	Main motor power	22	KW

OTHER MODEL OF SHEARING MACHINE

No	Model	Max cut thickness mm	Max cut length mm	Ram Stroke n/min	Cutting angle °	Motor kW	Machine Size mm
1	4x2500	4	2500	20-40	0.5-1.5	5.5	3100x1600x1700
2	4x3200	4	3200	20-40	0.5-1.5	7.5	3800x1800x1700
3	6x2500	6	2500	16-35	0.5-1.5	7.5	3150x1650x1700
4	6x3200	6	3200	14-35	0.5-1.5	7.5	3860x1810x1750
5	6x4000	6	4000	10-30	0.51.5	7.5	4630x2030x1940
6	6x5000	6	5000	10-30	0.5-1.5	11	5660x2050x1950
7	6x6000	6	6000	8-25	0.5-1.5	11	6680x2200x2500
8	8x2500	8	2500	14-30	0.5-1.5	11	3170x1700x1700
9	8x3200	8	3200	12-30	0.5-1.5	11	3870x1810x1780
10	8x4000	8	4000	10-25	0.5-1.5	11	4680x1900x1860
11	8x5000	8	5000	10-25	0.5-1.5	15	5680x2250x2200
12	8x6000	8	6000	8-20	0.5-1.5	15	6800x2350x2700
13	10x2500	10	2500	10-25	0.5-2.0	15	3270x1730x1800
14	10x3200	10	3200	9-25	0.5-2.0	15	3990x2250x2200
15	10x4000	10	4000	6-20	0.5-2.0	15	4720x2490x2500
16	10x5000	10	5000	7-20	0.5-2.0	22	5720x2600x2800
17	10x6000	10	6000	6-20	0.5-2.0	30	6720x2500x2550
18	12x2500	12	2500	10-25	0.5-2.0	15	3270x1730x1800
19	12x3200	12	3200	9-25	0.5-2.0	15	3990x2250x2200
20	12x4000	12	4000	6-20	0.5-2.0	15	4720x2490x2500
21	12x5000	12	5000	7-20	0.5-2.0	22	5720x2600x2800
22	12x6000	12	6000	6-20	0.5-2.0	30	6720x2500x2550

MAIN COMPONENTS

1. Main seal: Valqua CO. (Japan)
2. Main electric parts: Schneider (Germany)
3. Casting connector: Cast CO. (Italy)
4. Oil pump: Hongyuan (Shanghai)
5. Hydro-cylinder: Hengye (China)
6. Motor: Siemens (Germany)/Xinyu (China)

QUALITY WARRANTY & AFTER SERVICE

Guarantee Period:
One year for whole machine.

After Service:
The manufacturer support twice operating training, first one is at my factory during the processing time, second one at the buyer's factory during the re-installation/testing period. We will send our engineers go to buyer's factory help to re-install this machine if customer required, and the customer need to pay for their flight tickets( go and back), room and board, local travel cost

FAQ

How about your machine quality?We are worry about the quality.
ACCURL is a mature brand in CHINA, through our many years research in technology,our design including structure and detailed sercurity and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry, there are Kingwell. And where there are our machines,there are good reputation and terminal user satisfaction.

Whether the machine price can be more discount.
ACCURL always provide high quality machine,as we know ,oversea market is more important and difficult than domestic market because of communication time costing after sales,So always,our machine has enough quality standard to make sure the machine can work more than the real warranty period. In this way, we will save a lot and think in advance for the clients.
Actually Kingwell also think about our price level, we are sure to provide quality=price and price=quality ,the matched price and acceptable for the clients and durable for our machines.We welcome your negotiate with us and get a good satisfaction.

How about your factory in CHINA .
ACCURL located in MAANSHAN,ANHUIProvince who is the leading area in China and also in the worldwide as the center of the metal plate processing machines,We have worked about 20 years in this area and totally have about 100 staffs.Rich experience in this field with professional technical supporting and oriented service.
We welcome your visit to us any time.

Basic Info

Model NO.: QC11Y-16X3200
Layout: Horizontal
Automatic Grade: Semi-Automatic
Cutting Mode: Blade
Voltage: Customized
Color: Optional
Workpiece: Metal Sheet/Plate/Rod/Bar/Ribbon/Strip
Processing Object: Iron, Aluminum , Stainless Steel Plate, etc.
Trademark: ACCURL
Specification: CE
HS Code: 84623990
Customized: Customized
Cutting Material: Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
Power Source: Hydraulic Pressure
Support OEM: Yes
Guarantee Period: 12 Months After Delivery
Machine Body: Welded Thick Steel Plate
Work Principle: Guillotine Cutting , Hydraulic Drive
Power: Electricity
Transport Package: Steel Pallet
Origin: Anhui, China
