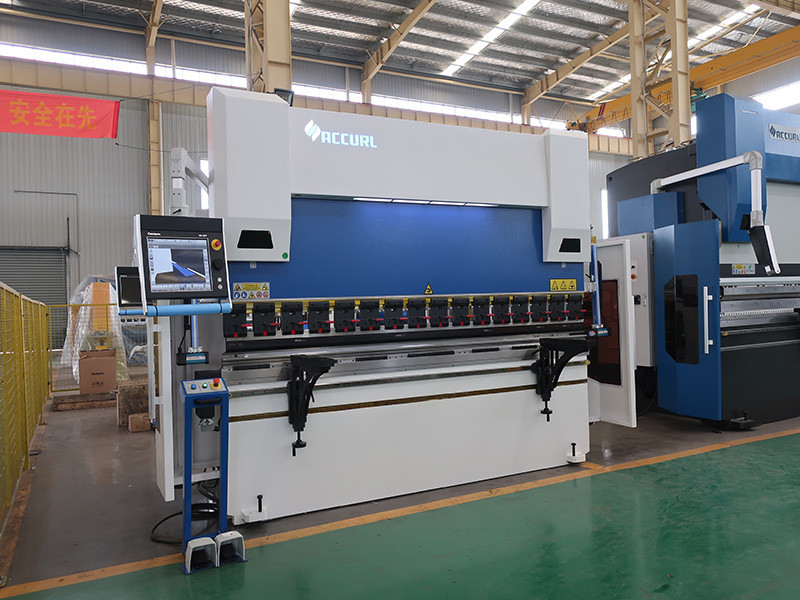

hydraulic press brake bending metal sheet 12mm 3 meter

hydraulic press brake 12mm

Main features & Advantages

» The frame is steel-welded construction, vibration to eliminate stress, with high strength and good rigidity.

» Synchronized positive stop design, and by Estun NC programmable controller assuring accurate repeatability & ease of use.

» Integrated hydraulic system allowing rapid approach switching automatically to slow bend.

» Inch, single mode being designed for the machine and reversing and maintain time can be controlled by the time relays.

» Safe fence and the electric inter locker have bee designed for the machine to ensure the operation safety.

» The RAM is adopted hydraulic top-drive with two cylinders, working smoothly and stably.

» Mechanical stop nuts ensure stable and reliable positioning accuracy.

» The segmented punches of different length are adopted which can be combined into a certain
Length according to the processing demand to meet the different requirement of special workpieces.

» Back gauge is driven by guide way, quick, convenient and accurate.

» The machine can be adopted with normal clamp devices or quick clamp as an option according to the customer's requirement to decrease the labors' work intension and increase the work efficiency

All models and parameters for your reference

Model	Nominal pressure	Worktable length	Distance between columns	Throat depth	Opening	Motor	Dimension(LXWXH)
	Ton	mm	mm	mm	mm	Kw	mm
40T/1500	40	1500	1180	250	325	4	1850×1300×2100
40T/2000	40	2000	1550	250	325	4	2250×1300×2100
40T/2500	40	2500	2050	250	325	4	2750×1300×2100
63T/2500	63	2500	2050	250	360	5.5	2750×1350×2230
63T/3200	63	3200	2600	250	360	5.5	3450×1350×2230
80T/2500	80	2500	2050	320	380	7.5	2750×1400×2350
80T/3200	80	3200	2600	320	380	7.5	3450×1400×2350
100T/2500	100	2500	2050	320	380	7.5	2750×1450×2380
100T/3200	100	3200	2600	320	380	7.5	3450×1450×2380
100T/4000	100	4000	3200	320	380	7.5	4250×1450×2380
125T/2500	125	2500	2050	320	380	7.5	2750×1450×2380
125T/3200	125	3200	2600	320	380	7.5	3450×1450×2380
125T/4000	125	4000	3200	320	380	7.5	4250×1450×2380
160T/2500	160	2500	2050	320	380	11	2750×1700×2600
160T/3200	160	3200	2600	320	450	11	3450×1700×2600
160T/4000	160	4000	3200	320	450	11	4250×1700×2600
200T/3200	200	3200	2600	320	470	15	3450×1850×2860
200T/4000	200	4000	3200	320	470	15	4250×1870×2950
250T/3200	250	3200	2600	400	530	18.5	3450×1920×3050
250T/4000	250	4000	3200	400	530	18.5	4250×1950×3150
300T/3200	300	3200	2600	400	560	22	3450×2200×3130
300T/4000	300	4000	3200	400	560	22	4250×2250×3320
300T/6000	300	6000	4700	400	560	22	6100×2250×4250
400T/3200	400	3200	2600	400	640	30	3200×2280×3250
400T/4000	400	4000	3200	400	640	30	4000×2300×3600
400T/6000	400	6000	4700	400	640	30	6000×2350×4650
500T/6000	500	6000	4700	400	640	37	6000×2450×4700
600T/6000	600	6000	4700	460	650	45	6000×2700×5710

E21 NC control system, 2 Axis(Y,X)

Features:
-Backgauge and block control -Control for general AC motor, frequency inverter
-Intelligent positioning -Stock counter -Holding / decompression time setting
-Program memory of up to 40 programs up to 25 steps per program -One side positioning
-Retract function -One key backup/restore of parameters and programs -mm/Inch -Chinese/English

E200 CNC control system, 2 Axis(Y,X), Servo drive

Features:
-Backgauge and block control
-BUS mode control servo system
-Stock counter
-Program memory of up to 40 programs up to 25 steps per program
-One side positioning
-Retract function
-mm/inch
-Chinese /English

DELEM DA52s CNC control system, 3 Axis(Y1, Y2, X)

Features:
-Quick, one page programming
-Hotkey navigation
-7'' widescreen colour TFT
-Up to 4 axes(Y1, Y2, and 2 auxiliary axes)
-Crowning control
-Tool/material/product library
-USB, peripheral interfacing
-Advanced Y-axis control algorithms for closed loop as well as open loop valves
-Panel based controller with optional housing.

Basic Info

Model NO.: WC67Y-300T/3200
Control System: Estun E21 Nc Controller
Bending Thickness: 12mm Mild Steel
Power Supply: Customized as You Request
Precision: 1 Degree on One Meter
Hydraulic System: Rexroth
Trademark: ACCURL
Transport Package: Nude Packing, Steel Pallet
Specification: 3450x2200x3100mm(LxWxH)
Origin: maanshan, anhui,China
HS Code: 8462299000
