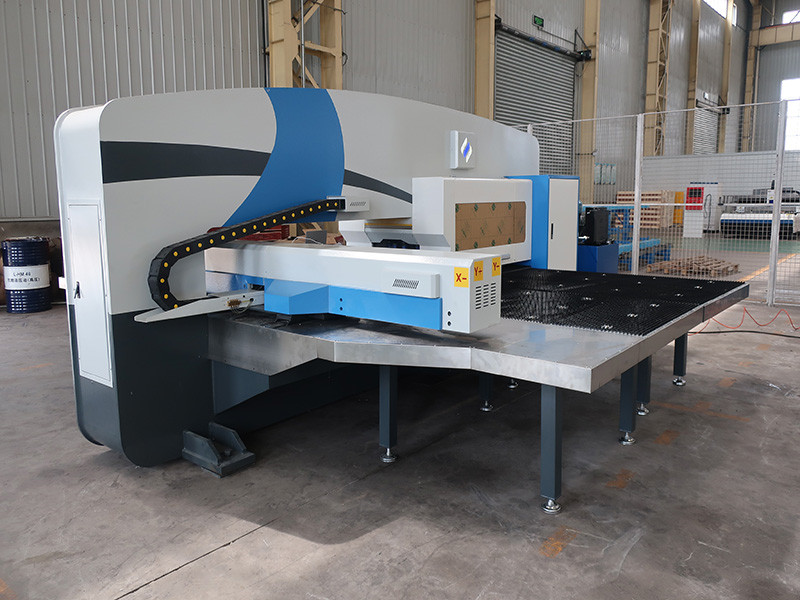

MAX-SF-30T used cnc turret punch press

used cnc turret punch press

Product Description

CNC Turret Press D-MAX-SF-30T machines is an outstanding machine for punching and forming. And it is ideal for manufacturing a variety of products such as precision enclosures, control cabinets, and aerospace parts.

Mechanical punching press, stable, reliable and easy for operation and maintenances

Independently developed CNC system.

Metform Automatic reposition function, better for large volume production.

Unique designed, metform automatic adjustable auxiliary table, for convinience of exchanging mould.

O type close press house, weld structure, stress relief annealed.

Specific clamp retract function. metform automatic protection for the Clamps and no dead area for punching on sheet.

Centralized lubricating system MAX-SF-30T CNC Turret Punch/Stainless Steel Perforating Machine/Turret Punch Press

Product Feature

1. High-intensity, high-rigidity steel plate welding structure bed.
2. Hydraulic system drive, stable, low noise.
3. Adopt long-oriented, international general structure, to facilitate matching.
4. Inlaid with high-quality wear-resistant lining, convenient maintenance and long service life.
5. Full-featured CNC System.
6. Imported FAGOR control system.
7. Imported famous brand AC servo motor. To ensure high-speed, good stability and high precision.
8. Imported Ball Screw.
9. Imported Precision Linear Guide way.
10. Universal ball bearing material or fine brush units, to protect the work piece from being scratched.
11. Reasonable Price.

Application Field

Widely used in Metal processing, can realize various punching, specially for small quantities of sheet metal processing.

Performance

- CNC control feeding line with two 16ton 600mm deep throat punch
High Accuracy
Good function
High efficient
Two times Positioning

Die station allocated in Turret

Station TypeTool

Size(mm)

16 station

Turret

20 station

Turret

24 station

Turret

32 station

Turret

AΦ1.5-φ12.7681216
Bφ12.7-φ31.868812
Cφ31.8-φ50.82222
Dφ50.8-φ88.92222

Specification

Punching Capacity:300KN

Max. sheet size :2500×1250mm

If repositioning :5000×1250mm

Max. thickness: 4mm

Die Stations:32, including 2 auto index stations

Distance accuracy between holes :±0.1 mm

Rate Hit rate:280HPM

Max. Feeding Speed:80m/min

Life Cycle of punching Die:500,000.00 hits

3-Axis Controlled X-Axis, Y-Axis and T

PneumaticClamps: 2

Power Supply: 7200W

Pneumatic pressure:0.55MPa

Overall Size:5000×4000×2100mm

Net weight :11500kg

30T Cnc Turret Punch Press and cnc Turret Punching Machine

Our Services

A.Warranty : one year

B.Engineers available to serve machine overseas

C.Strict factory inspection

D.Complete equipment manual

E.Online instruction

F.Provide all components, spare parts and consumptive material

30T Cnc Turret Punch Press and cnc Turret Punching Machine

Quick Details

Condition:New
CNC or Not: CNC
Power Source: Mechanical
Place of Origin: Anhui, China (Mainland)
Brand Name: ACCURL
Voltage: 380V
Power(W): 7.5KW
Weight: 11.5T
Dimension(L*W*H): 5000*4000*210
Certification: ISO9001
Warranty: 1 Year
After-sales Service Provided: Engineers available to service machinery overseas
model: D-T3024X2 for turret punch press
colour: upon request for turret punch press
product name: turret punch press
packing: plywood case for turret punch press
price: negotiable for turret punch press
condition: new for turret punch press
payment terms: west union T/T L/C for turret punch press
MOQ: 1 set for turret punch press
