new standard cnc press brake splendid series machines

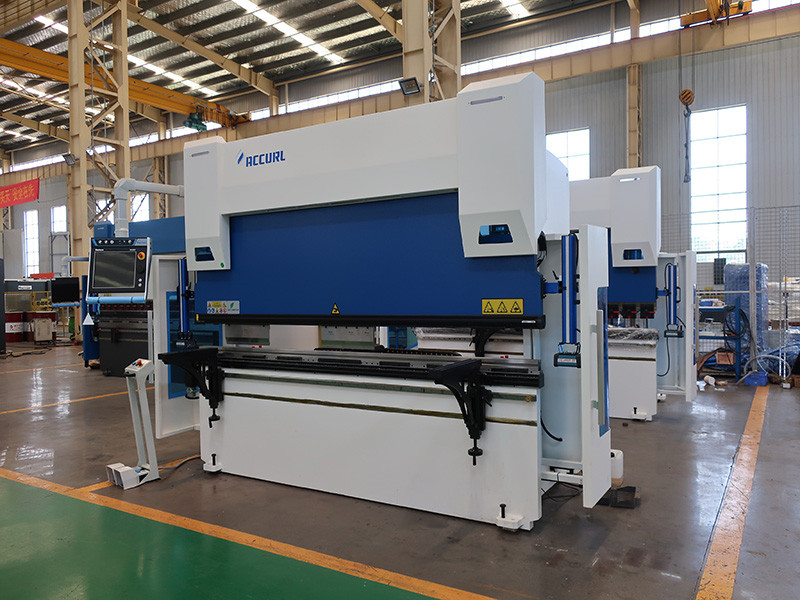

new product cnc press brake

Sailent Features

5 Axis machine (Y1-Y2 & X Axis) accurate two axis back guage & hydraulic crowning.
Designed to meet precise bending requirement with low investment
DNC 884 – Cybelec or DA 56 Delem press brake controller.
Color Graphic TFT 10″ Display with keypad
Ultrasonically tested IS 2062 grade robust steel structure.
Rigid upper beam guide on 8 – point roller bearings.
Hydraulic Crowning.
Back guage assembly included Ball Screw AC Servo Drive
LM GuidesS Timer Belt.
Multi “V” 4 way hardened & grounded segmented indigenous die & Punch.
Quick release clamps.
Front Sliding Sheet Support with LM guide for easy movement.
Multi Step back guage fingers mounted with pair of LM Guides.
Adaptibility of Various types of tools 8 special bending needs.

Optional Features

Higher versions of controllers.
Manual or automatic new standard premium crowning from WILA Netherlands or equivalent
Additional R-Axis
Special Toolings.
European Safety & CE marking

Standard Accessories

Main Drive Motor.
Selection of Auto, Manual & Adjust mode.
HMI with 5.7″ LCD, monochrome screen & numeric keypad.
Proportional hydraulics for Y1, Y2 axis.
Individual linear encoder for Y1 & Y2 for precise synchronization of beam movement.
AC Servo motor with resolver for back gauge drive.
Hardened & Grounded Ball screw.
Linear motion bearing on guide rods.
One suitable five way, hardened & grounded die and punch*
Manual anti deflection unit.
Pair of sheet support.
Movable work station with pair of foot switch.

Specifications

Model	Tonnage MT	Table Size (in mm)		Working Height of Table (in mm)	Clear Pass (in mm)	Ram Stroke (in mm)	Open Height (in mm)	Closed Height (in mm)	Throat Depth (in mm)	RAM speeds Mm/sec.			Motor HP	RAM speeds Mm/sec.
Model	Tonnage MT	Table Size (in mm)		Working Height of Table (in mm)	Clear Pass (in mm)	Ram Stroke (in mm)	Open Height (in mm)	Closed Height (in mm)	Throat Depth (in mm)	Approach	Pressing	Return	Motor HP	Length x Width x Height (in mm)
PBS 315	30	125X1500	2X1500	900	1050	100	250	150	200	100	7	80	3	1750x1050x1900
PBS 320	30	125X2000	2X2000	900	1550	100	250	150	200	100	7	80	3	2200x1150x1900
PBS 415	40	180X1500	3X1500	900	1050	100	250	150	200	100	7	80	5	1700x1275x2300
PBS 420	40	180×2000	3X3000	900	1550	100	250	150	200	80	6	70	5	2200x1150x1900
PBS 520	50	180×2000	3X2000	900	1550	100	250	150	200	80	6	70	5	2700x1150x1900
PBS 525	50	180×2500	2.5X2500	900	2050	100	250	150	200	80	6	70	5	2700x1150x1900
PBS 625	65	170×2500	3.15X2500	900	2050	150	330	180	200	100	7	80	5	2700x1450x2050
PBS 830	80	180×3000	3X3000	900	2500	150	350	200	200	100	7	80	7.5	3750x1650x2650
PBS 840	80	180X4000	2.5X4000	900	3100	150	350	200	200	100	7	80	7.5	4750x1800x2800
PBS 1025	100	180×2500	5X2500	900	2000	150	350	200	200	100	7	80	10	3250x1650x2700
PBS 1030	100	180×3000	4×3000	900	2500	150	350	200	200	100	7	80	10	3750x1700x2800
PBS 1040	100	180X4000	3X4000	900	3100	150	350	200	200	100	7	80	10	4750x1850x300
PBS 1225	125	230X2500	6X2500	900	3100	150	350	200	300	100	6	80	10	3750x1700x2850
PBS 1230	125	220×3000	5×3000	900	2500	200	410	210	300	100	6	80	10	3750x1700x2850
PBS 1240	125	220×4000	4×4000	900	3100	200	410	210	300	100	6	80	15	4800x1800x3000
PBS 1625	160	220×2500	8X2500	1000	2050	150	350	200	300	100	7	80	15	2750x1800x2600
PBS 1630	160	220×3000	6X3000	1000	2500	200	410	210	300	100	7	80	15	3750x1800x2900
PBS 1640	160	220×4000	5X4000	1000	3100	200	410	210	300	100	7	80	15	4800x1900x3200
PBS 1650	160	220×5000	4X4000	1000	4100	200	410	210	300	100	7	80	15	5750x2100x3400
PBS 2025	200	220×2500	10X2500	900	2000	200	410	210	300	100	6	80	20	3800x1900x3000
PBS 2030	200	220×3000	8X3000	900	2500	200	410	210	300	100	6	80	20	3800x1900x3000
PBS 2040	200	220×4000	6X4000	900	3100	200	410	210	300	100	6	80	20	4800x2000x3250
PBS 2050	200	220×5000	6X5000	900	4100	200	410	210	300	100	6	80	20	5750x2200x3500
PBS 2530	250	300×3000	10X3000	1000	2500	200	410	210	300	80	6	80	25	3800x2000x3100
PBS 2540	250	300×4000	8X4000	1000	3100	200	410	210	300	80	6	80	25	4800x2050x3250
PBS 2550	250	300×5000	6X5000	1000	4100	200	410	210	300	80	6	80	25	5750x2250x3700
PBS 3025	300	300×2500	15X2500	1000	2050	250	500	250	300	80	5.5	80	25	3850x2050x3200
PBS 3030	300	300×3000	15X3000	1000	2100	250	500	250	300	80	5.5	80	25	3850x2050x3200
PBS 3040	300	300×4000	10X4000	1000	3100	250	500	250	300	80	5.5	80	25	4850x2100x3400
PBS 3050	300	300×5000	8X5000	1000	4100	250	500	250	300	80	5.5	80	25	5750x2300x3900
PBS 3060	300	300×6000	6X6000	1000	5100	200	500	250	300	80	5.5	80	25	6750x2400x4000
PBS 4030	400	300×3000	16X3000	1000	2500	300	600	300	350	75	5	80	30	8850x2100x3400
PBS 4040	400	300×4000	12X4000	1000	3100	300	600	300	350	75	5	80	30	4850x2200x3600
PBS 4050	400	300×5000	10X5000	1000	4100	300	600	300	350	75	5	80	30	5750x2400x4100
PBS 4060	400	300×6000	10X6000	1000	5100	300	600	300	350	75	5	80	30	6750x2500x4200
PBS 5030	500	300×4000	20X3000	1000	2100	300	600	300	350	100	6	100	40	3500x2200x3200
PBS 5040	500	300×4000	16X4000	1000	3100	300	600	300	350	100	6	100	40	4900x2300x3900
PBS 5050	500	300×5000	12X5000	1000	4100	300	600	300	350	100	6	100	40	6000x2400x4100
PBS 5060	500	300×6000	10X6000	1000	5100	300	600	300	350	100	6	100	40	7000x2500x4500
