QC12K series hydraulic shearing machine

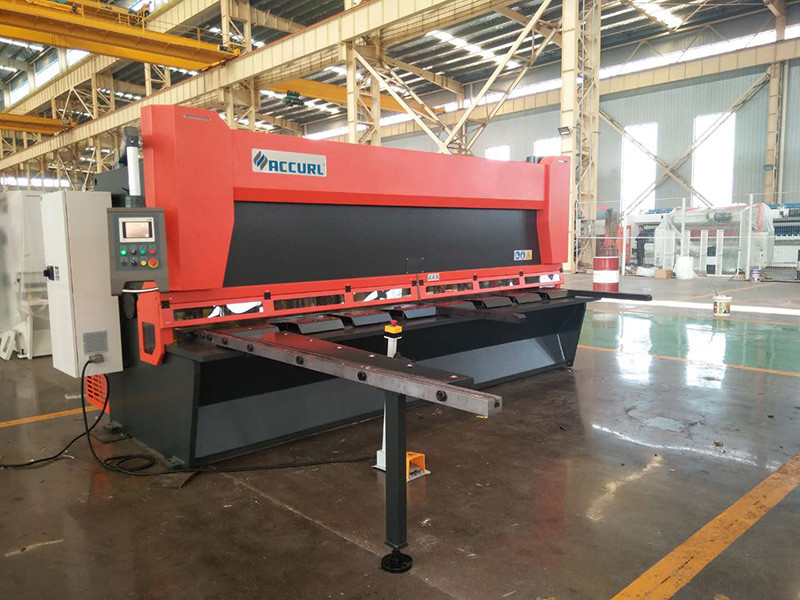

qc12k shearing machine

1.Standard Facilities:

1. ESTUN E21 NC control + Frequency inverter control back gauge and shearing times
2. Front support arms with stopper and measure scale
3. Main electric components are from SIEMENS or SCHNEIDER
4. Hydraulic seals are from NOK, Japan
5. Hydraulic valves are from OMEGA
6. Hydraulic pump is from SUNNY brand (USA venture in China )
6. Main motor is from SIEMENS brand
7. Steel-welded construction, vibration to eliminate stress, with high strength and good rigidity
8. Hydraulic top-drive, steadiness and reliability
9. With adopts quick manual adjust device, cutting stroke can adjust to be suitable shearing short sheet
10. With motor-driven back gauge and counter device
11. CE standard back-safety curtain

2. Estun E21 NC Press Brake Control system:

1. Monochrome LCD Box Panel.
2. Integral factor programmable freely
3. Automatic positioning control
5.Internal time relay
6.Ram stroke counter

3. Our Services

1: Response in time after getting customer's claim
1: Provide solution in 1 day
2: Usually solve problem within 2 days
2. For big machine, Installation Service is available as per customer's requirement

4. Training Service

Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.

5. Quality Guarantee

We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.

6. Main functions:

1. The machine frame is welded construction with steel plate, and stress is eliminated by vibration. with high strength, stable performance, easy operation and convenient maintenance.
2. As the cutting beam of machine has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can also be guaranteed.
3. With the help of hydraulic drive, swing beam, return of knife beam is smooth and prompt by accumulator ( Nitrogen cylinder ).
4. Stepless adjusting is available for the stroke of knife beam for different length plate shearing.
5. The position of low blade is adjustable, thus ensuring the equilibrium of the gap between blades after regrinding.
6. It is easy and quick to adjust the gap between blades. The value of the gap is indicated on a dial.
7. Motorized adjusting and manual adjusting for the back gauge.

Parameter	Shearing Thickness(mm)	Shearing Width(mm)	Shearing Angle	Number of stroke	Backgauge (mm)	Motor (kw)	Net W. (kg)	Overall Dimensions(mm)
4*2000	4	2000	1° 30'		600	4	3500	255014301560
4*2500	4	2500	1° 30'		600	4	4000	310014301560
4*3200	4	3200	1° 30'		600	5.5	5300	384016801670
6*2500	6	2500	1° 30'	18	20-600	7.5	6000	304016161620
6*3200	6	3200	1° 30'	14	20-600	7.5	7200	384016101620
6*4000	6	4000	1° 30'	10	20-600	7.5	10000	464017051700
6*6000	6	6000	1° 14'	10	600	18.5	17000	660019501980
8*2500	8	2500	1° 30'	14	20-600	11	6.500	324016101620
8*3200	8	3200	1° 30'	10	20-600	11	7.800	401016101620
8*4000	8	4000	1° 30'	8	20-600	11	11000	468017051700
8*6000	8	6000	1° 30'	8	20-800	18.5	19000	688022102890
10*2500	10	2500	1° 48'	12	20-600	15	8000	335020501950
10*3200	10	3200	1° 48'	10	20-600	15	10000	405020501950
10*4000	10	4000	1° 30'	8	10-800	18.5	12500	485023002200
10*6000	10	6000	1° 30'	8	20-1000	30	20000	702025803280
12*2500	12	2500	1° 30'	12	10-800	18.5	11000	332020502230
12*3200	12	3200	1° 30'	10	10-800	18.5	12500	402020502230
12*4000	12	4000	2°	8	10-800	22	15000	485024002200
12*6000	12	6000	1° 30'	6	20-1000	37	23000	702026803380
12*8000	12	8000	1° 30'	4	20-1000	45	33000	902026803380
16*2500	16	2500	2° 30'	8	10-800	18.5	15000	485024002200
16*3200	16	3200	2 ° 30'	7	10- 800	22	18000	410020602010
16*4000	16	4000	2°	6	10-800	30	23000	490024002250
20*2500	20	2500	2°	6	10-800	37	16000	344020882570
20*3200	20	3200	2°	5	10-800	37	23000	410023502710
20*4000	20	4000	2° 30'	4	10-800	37	30000	492024002790
25*2500	25	2500	3°	5	40-1000	45	19000	348024102690
25*3200	25	3200	3°	5	40-1000	45	26000	418024102690
25*4000	25	4000	3°	5	40-1000	45	33000	498524102690
