WC67K-30T 1600mm hydraulic press brake, sheet metal bending machine, with CE certificate

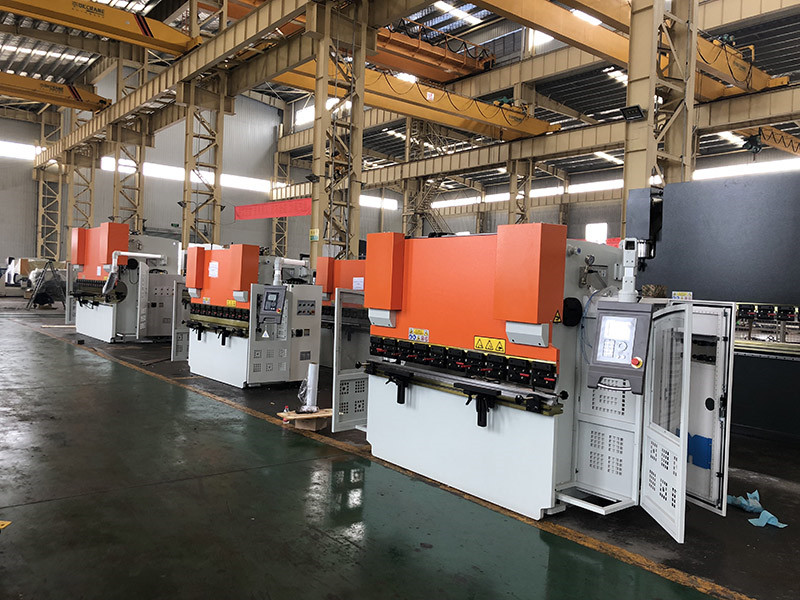

press brake for steel warehouse

Product Description

1.The WC67K NC Hydraulic Press Brake-E21 design meets EU international standards. The fuselage eliminates internal stress by annealing and ensures higher precision and strength.

2. The WC67K series torsion axis hydraulic plate press brake uses Chinese ESTUN NC control system to help you increase your productivity and keep the lowest cost and lower maintenance costs. High quality and repetitive bending is obtained by using synchronized cylinders and valves;

3. E21 system programming control system and inverter realize the accurate positioning function of X axis Y axis;

4. Cutting-edge frequency response hydraulic control technology, rigid upper beam runs on 8-point bearings with bending precision of +/-0.01 mm;

Main Configurations:

-- Imported seals

-- Movable Pedal Switch

-- Inverter Control Motor Operation

-- Standard Two Axes Control (X,Y)

-- Front Material Supporting Frame

-- Mechanical Torque Synchronization

-- Domestic Famous Digital Display Device

-- Schneider or Siemens Low-voltage Electricals

-- Ball Screw and Light Rod Back guage Operation Control

-- Standard upper and bottom Molds( Upper Inclined Block Type deflection Compensation)

Parameters

Model		30T/1600mm
Tonnage(T)		30
Normal Pressure(KN)		300
Number of conrtol axes		2
Max.Bending Thickness	Mild Steel	2.3
	Stainless Steel	1.3
Length of worktable(mm)		1600
Distance Between Frames(mm)		1304
Throat depth(mm)		200
Stroke Length(mm)		80
Open Height(with tool holders)(mm)		210
Table Height(mm)		760
Approach Speed(mm/sec)		80
Bending Speed(mm/sec)		20
Return Speed(mm/sec)		80
Oil Capacity		65
External Length(mm)		2100
External Width(mm)		1200
External Height(mm)		2100
Approximate Weight(KG)		1680
Motor Power(KW)		3
Control Type		NC

Our Package and Transport

(1) Before Packing, the machine tool will be testing for 48 hours to ensure all the equipment is 100% qualitied.

(2) Before loading, stable package, professional and skilled loader reduce damage of product during transport.

(3) After loading, our professional documentary staff will follow the order till the product departs from port.

Installation and Training

(1) Because of time and distance, usually we don't supply on-site installation for covetional product, it will reduce the using cost of customer .But considering about the customers who need installation or maintenance, we will charge relevant fees accordng to specific condition. We will communicate with you about all the preparatory work in advance for non-standard product.

(2) Installation and use of the machine is referenced to the manual operation. If you have any other doubt, please contact us directly.

Quick Details

Condition: New
Place of Origin: Anhui, China (Mainland)
Brand Name: ACCURL
Model Number: WC67Y 30T/1600
Machine Type: Press Brake
Raw Material: Sheet / Plate Rolling
Material / Metal Processed: Stainless Steel
Power: Hydraulic
Automation: Manual
Extra Services: End Forming
Certification: CE
After-sales Service Provided: Engineers available to service machinery overseas
color: Optional
Throat depth(mm): 200
Stroke(mm): 80
Open Height(mm): 210
Main motor(kw): 3
Distance Between Columns: 1304 mm
Weight: 1200Kg
Overall Dimensions: 2100*800*1780
Nominal Pressure: 300 KN
Table Length: 1600 mm
