WC67Y-100T/3200 nc press brake, press break machine, hydraulic press brake

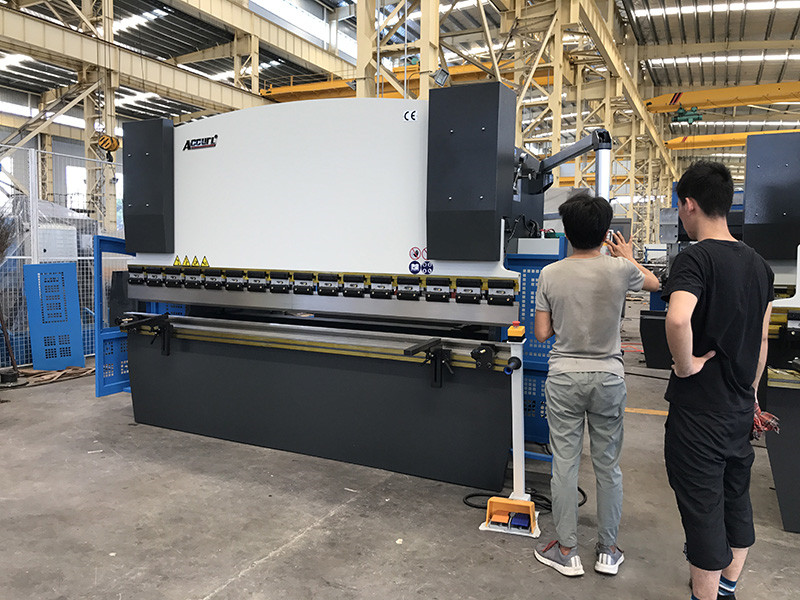

wc67y press brake

Product Description

The whole structure of the hydraulic press brake:
Welded structure: the stress of the welded parts can be eliminated by vibration; so this forging press gives high accuracy.
Frame: consists of right and left wall boards, working table, oil box, slot steel and etc. The stress of the welded parts can be eliminated by vibration. The machine enjoys high accuracy and high strength and can be transported easily.
High accuracy,high efficiency,simple and convenient operation,good performance, favorable price and best service.

1. Hydraulic system:

Adopt integrated hydraulic control system, more reliable
Be installed at the top of the oil box, which can assure that the cylinder is always full of oil when the slide is moving down at high speed
Consist of motor, oil pump and valve groups
Complete working cycle can be realized through the control of hydraulic valve.
The working pressure at the right side of the wall board can be adjusted by the remote adjustment valve

2. Protective fence and the safety interlock

Protective fence and the safety interlocker to ensure the operation safety. Power supply switch that is set in the electric box will be automatically turned off when the box's door is opened or the fence is turned up. Protecting barrier with safety interlocker is mounted on the back of the machine. Another, there are travel limit protection and foot pedestal mounted emergency off switch.

3.Synchro control system:

Slide syncho system: adopt steel torsion bar synchro system, simple in structure and high in accuracy
2 ends of slide has 2 synchro fork which make,The system uses upper die compensation to improve the brake precision.
Adopt upper die compensation to improve the brake precision

4. Sectional Ram Clamp Bars:

Separate sectional clamping bars are supplied as standard equipment in order to securely fasten short dies, as well as standard length tooling. Unique crown correcting device is standard.

5. Advance technology and procedures:

This metal machining tool is a kind of steel torsion bar synchro press brake. -Electronic control of back gauges and ram stroke, data displayed and manual setting
Process of cylinder and sealing component:
Cylinder: no.45# steel treated, inner holes fine machined and extruded.
Valve rods: no.45# steel treated, nickel and phosphorous coated outside.

1.Main Features

1) hydraulic drive, the machine at both ends of the cylinder placed in the slider, direct drive sliding work.
(2) the use of mechanical block structure, stable and reliable.
(3) slider stroke maneuver fast tune, manual fine-tuning, counter display.
(4) the use of all welded structure, with sufficient strength and rigidity.
(5) The slider synchronization mechanism uses the torsion axis forcing synchronization.
(6) wedge-shaped deflection compensation mechanism to ensure a higher bending accuracy

2. Main Configuration

Estun E21 NC controller
Controller controls and adjusts Y-axis and X-axis
Servo drive and control positioning of X-axis and Y-axis
Adopting HIWIN ball screw and linear guide rail, accuracy 0.05mm
Front supporter bracket
Germany Bosch Rexroth hydraulic valve block
Germany EMB oil tube connector
Germany Siemens main motor
France Schneider electrics
Hydraulic & electrical overload protection
Upper and lower dies（86°, R0.6mm, material: 42CrMo)

3. Safety Standard:

1.EN 12622:2009 + A1:2013 2.EN ISO 12100:2010 3.EN 60204-1:2006+A1:2009
Front Finger protection ( safety light curtain )
South Korea KACON pedal switch ( safety grade 4 )
Back metal safeguard, CE standard
Safety relay monitor pedal switch, safety protection
Safety standard ( 2006／42／EC）

Quick Details

Condition: New
Place of Origin: Anhui, China (Mainland)
Brand Name: ACCURL
Model Number: WC67K-100T/3200
Machine Type: Press Brake, Bending Machine
Raw Material: Sheet / Plate Rolling
Material / Metal Processed: Carbon Steel
Power: Hydraulic
Automation: Manual
Extra Services: End Forming
Certification: CE
After-sales Service Provided: Engineers available to service machinery overseas
Name: press brake
Control system: E21 from ESTUN
Mold: WC67Y-100T/3200
Warranty: 2 Years
Bending thickness: 3.9mmmm carbon steell
bending length: 3200mm
Worktable length: 3200mm
Dimension: 2500*1600*2600mm
power: 7.5KW
