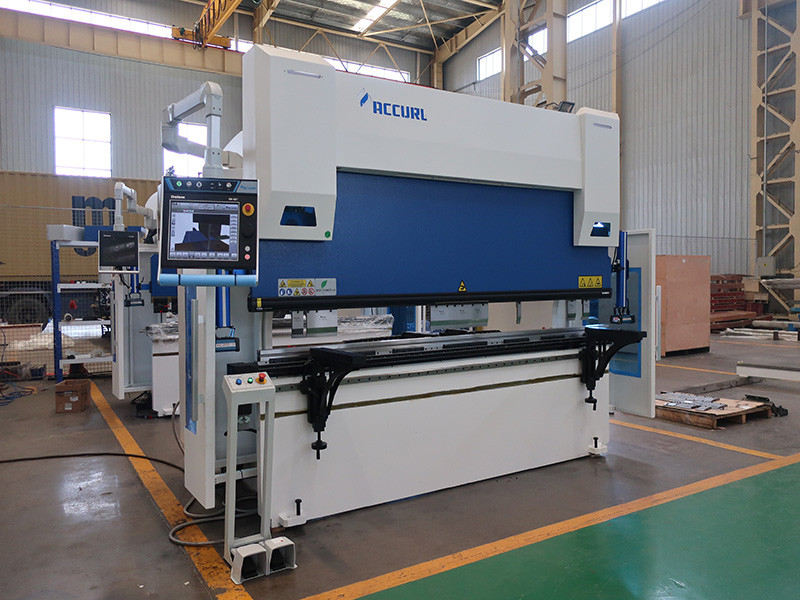

Wc67y-125t/2500 hydraulic press brake sheet bending machine with good price

press brake with good price

Product Description

WC67Y-125T/2500 hydraulic press brake sheet bending machine with good price

Character

1. Steel welded structure, vibrating treatment to remove the inter stress, with high strength and good rigidity
2. Hydraulic top-drive, steadiness and reliability, mechanical stop, steel torsion bar to maintain synchronization
3. Motorized-adjusting device of back gauge and RAM stroke, fine adjusting by hand wheel, numerical display
4. Travel limit protection, full machine guarding with safety interlocker
5. Two cylinders controlling beams vertical moving
6. Torsion synchronization
7. Integration hydraulic system
8. Standard punches and dies
9. Hanging arm control panel
10. Foot pedal with emergency stop

Main Components

Hydraulic system: Omega USA/Bosch Rexroth/ATOS ITAY
Electro parts: Siemens Germany/Schneider France
Motors: Siemens Germany
Oil Sealing: Valqua Japan
Controller Option: NC AND CNC
NC Digital Display: E10 FROM ESTUN
CNC Controller: DA41, DA52, DA65W FROM DELEM Holland
Certificate: CE and ISO Certificate

Shipping Documents

1. Operation Manual (hydraulic diagram, electro diagram)
2. Foundation plans
3. Quality Certification
4. Packing list
5. Colors: According to Customer's requirements

Enclosed Accessory

Front arm support, some pieces
Anchor bolt, some pieces
Nut, some pieces
Washer, some pieces
Oil gun, 1 piece
Foot pedal 1 piece

WC67Y-125T/2500 hydraulic press brake sheet bending machine with good price

Model
(WC67Y)		Nominal Pressure (kN)Length of table (mm)Distance Between Housing (mm)Throat Depth (mm)Stroke (mm)Open Hight (mm)Main Motor (kW)Dimensions
(L x W x H) (mm)		weight (T)
40/20004002000160020011033542545x1510x20503
40/25004002500200020011033542950x1510x20803.5
63/2000630200016002501103505.52555x1600x21303.8
63/2500630250020002501103505.52960x1600x21804.2
63/3200630320026002501103505.53740x1600x22305.2
100/25001000250020003501504007.52980x1650x23306.3
100/32001000320026003501504007.53740x1650x23557
100/40001000400032003501504007.54550x1650x24508.8
100/50001000500040003501504007.55100x1500x265011.8
125/25001250250020003501504107.53980x1650x23707.5
125/32001250320026003501504107.53750x1650x24508.2
125/40001250400032003501504107.54550x1650x24709
125/50001250500040003501504107.55100x1500x279511.5
125/60001250600045003501504107.56100x1500x289514
160/2500160025002000350150425112980x1715x24108.5
160/3200160032002550350150425113750x1715x245011
160/4000160040003200350190450114550x1715x273012
160/5000160050004000350190450115100x1570x290015.5
160/6000160060004500350190450116100x1570x301019
200/3200200032002600350240460113750x1815x271513
200/4000200040003200350240460114550x1815x285014
200/5000200050003800350240460115100x1715x302018.5
200/6000200060004500350240460116100x1715x312021
250/3200250032002600400240525113750x2010x285015.5
250/4000250040003200400240525114550x2010x301017
250/5000250050003800400240525115100x1890x319021.5
250/6000250060004500400240525116100x1890x335028
300/3200300032002600400250545153740x2100x323519.5
300/4000300040003200400250545154340x2100x330022
300/5000300050003800400250545155100x2100x343026
300/6000300060004500400250545156100x2100x349029

Basic Info

Model NO.: WC67Y WC67K WE67K
Electrical Parts: Siemens Germany/Schneider France
Oil Sealings: Valqua Japan
Operation System: CNC E21
Certificate: CE, ISO, SGS
Warranty: Five Years
Application: Machinery & Hardware
Type for Cutting Machine: CNC Cutting Machine
Type for Fold-bending Machine: CNC Fold-bend Machine
Trademark: Huantu Machinery
Specification: CE and ISO Certificate
Origin: Anhui, China
HS Code: 8462299000
