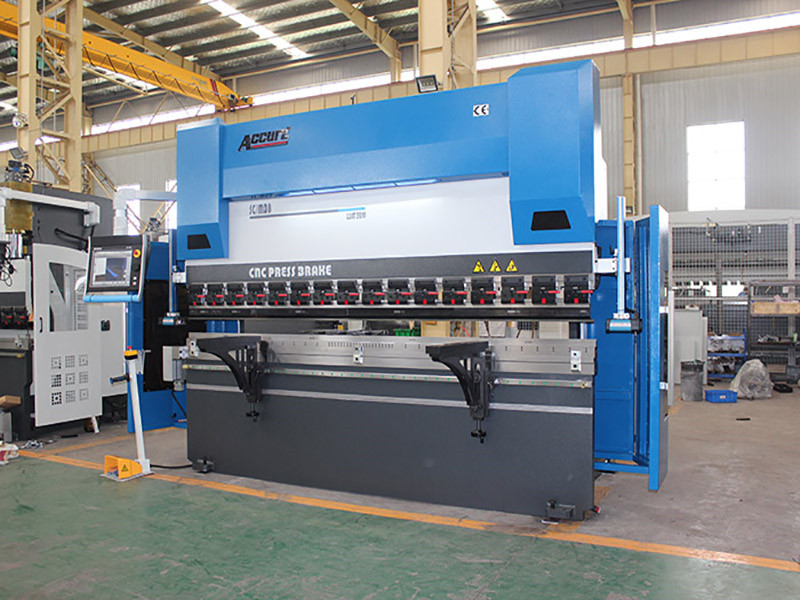

WC67Y 40t/2000 electric sheet metal bender large press brake machine

large press brake machine

Product Description

This cnc hydraulic press brake for sale is high-efficiency and high-precision in bending sheet metal. Using different kinds of upper and lower dies can bend all kinds of work pieces. One slider travel makes a sheet bending and the complicated shape work piece may be achieved through bending many times.

cnc hydraulic press brake for sale overall structure

a ) Using UG (finite element) analysis, through computer aid design, with nice appearance.
b ) The machine structure is welded with steel plate, with sufficient strength and rigidity. The hydraulic drive prevents the machine from serious overload operation accidents caused by the change of sheet thickness or bad choice of lower die cavity. Additionally, this machine is also featured by the steadiness of work, convenience of operation, and reliable safety.
c) The mechanic block is equipped in the oil cylinder to ensure the fixing accuracy when the slider travels to the bottom dead point and so as to assure the consistency of bending angle in bulking production.
d )Using German technology to eliminate internal stress.
e ) Entire frame using striking grit to get rid of rust and spout anticorrosive paint.

Model	Nominal force(KN)	Worktable length mm	Poles distance mm	Throat depth mm	Slider travel mm	Open max mm	Power KW	Dimension mm
40/1600	400	1600	1305	200	110	300	4	1800x1100x1870
40/2000	400	2000	1650	200	110	300	5.5	2200x1100x1870
40/2500	400	2500	2050	200	110	300	5.5	2700x1100x1870
40/3200	400	3200	2600	200	110	300	5.5	3400x1100x1870
50/3200	500	3200	2600	250	120	315	5.5	3400x1200x2150
63/1600	630	1600	1300	250	120	350	5.5	1800x1300x2250
63/2500	630	2500	2050	250	120	350	5.5	2700x1300x2250
63/3200	630	3200	2600	250	120	350	5.5	3400x1300x2250
80/2000	800	2000	1650	250	120	360	7.5	2200x1300x2260
80/2500	800	2500	2050	250	120	360	7.5	2700x1300x2260
80/3200	800	3200	2600	250	120	360	7.5	3400x1300x2260
80/4000	800	4000	3200	250	120	360	7.5	4200x1300x2410
100/2500	1000	2500	2050	320	120	380	7.5	2700x1350x2350
100/3200	1000	3200	2600	320	120	380	7.5	3400x1350x2450
100/4000	1000	4000	3200	320	120	380	7.5	4200x1350x2500
125/2500	1250	2500	2050	320	120	380	7.5	2700x1350x2350
125/3200	1250	3200	2600	320	120	380	7.5	3400x1350x2450
125/4000	1250	4000	3200	320	120	380	7.5	4200x1350x2500
160/2500	1600	2500	2050	320	155	420	11	2700x1510x2595
160/3200	1600	3200	2600	320	155	420	11	3400x1510x2595
160/4000	1600	4000	3200	320	155	420	11	4200x1510x2695
160/6000	1600	6000	4800	320	155	420	11	6200x1710x2880
200/2500	2000	2500	2050	320	200	440	15	2700x1680x2675
200/3200	2000	3200	2600	320	200	440	15	3400x1680x2675
200/4000	2000	4000	3200	320	200	440	15	4200x1680x2725
200/6000	2000	6000	4800	320	200	440	18.5	6200x1680x3345
250/2500	2500	2500	1900	320	250	520	18.5	2700x1690x2825
250/3200	2500	3200	2600	320	250	520	18.5	3400x1690x2875
250/4000	2500	4000	3200	320	250	520	18.5	4200x1690x2960
250/6000	2500	6000	4800	320	250	520	18.5	6200x1690x3100
300/3200	3000	3200	2600	400	250	535	22	3400x2020x3150
300/4000	3000	4000	3200	400	250	535	22	4200x2020x3125
300/6000	3000	6000	4800	400	250	535	22	6300x2050x3610
350/3200	3500	3200	2600	400	250	540	22	3500x2040x3100
350/4000	3500	4000	3200	400	250	540	22	4300x2040x3160
350/6000	3500	6000	4800	400	250	540	22	6300x2040x3500
400/4000	4000	4000	3200	400	320	615	30	4300x2100x3160
400/6000	4000	6000	4700	500	320	615	30	6300x2420x3500
500/4000	5000	4000	3200	400	320	635	30	4300x2240x3510
500/6000	5000	6000	4800	400	320	635	30	6300x2240x3615

Our Services

Presale Service

We assist customers in well understanding the product information like features, functions and applications and so on. As for the detailed procuring information or drawings, our professionals will first conduct a careful examination and then recommend the most suitable machines or devise proper schemes for customers. We also provide free samples if necessary.

After-Sale Service

1. One year warranty is provided.

2. Customers can send photos or samples for our confirmation once the parts are damaged within the one year warranty. If the parts are not damaged by misoperation, we will reply to customers within 48 hours and provide free parts for replacement. Besides, for the parts out of commission and beyond the

warranty, we only charge for the basic costs of parts.

3. We regularly follow up the service condition of products, and timely analyze and copy with the feedbacks. As for the disputes, we will figure out effective actions to reach mutual satisfaction.

Quick Details

Condition: New
Place of Origin: Anhui, China (Mainland)
Brand Name: ACCURL
Model Number: WC67Y
Machine Type: Beading Machine
Raw Material:Sheet / Plate Rolling
Material / Metal Processed:Stainless Steel
Power: Other
Automation: Automatic
Extra Services: Other
Certification: ISO 9001:2000
After-sales Service Provided: Engineers available to service machinery overseas
item: EMM WC67Y 40t/2000 electric sheet ress brake machine
the machine: high-efficiency and high-precision
additional function: Other
degree of automation: automatic
structure: sufficient strength and rigidity
Machine type: Beading Machine
this machine: convenience of operation
Overall structure: using German technology to eliminate internal stress
entire frame: "using striking grit to get rid of
